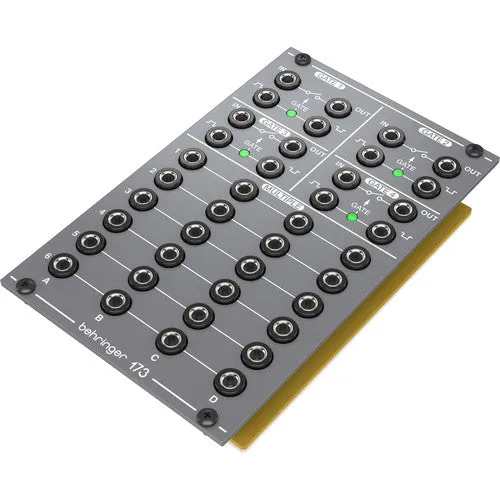

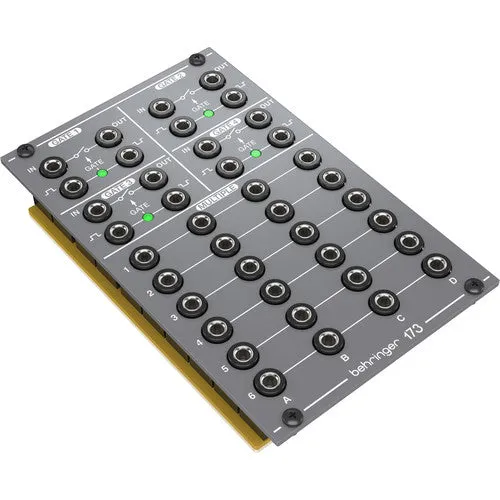

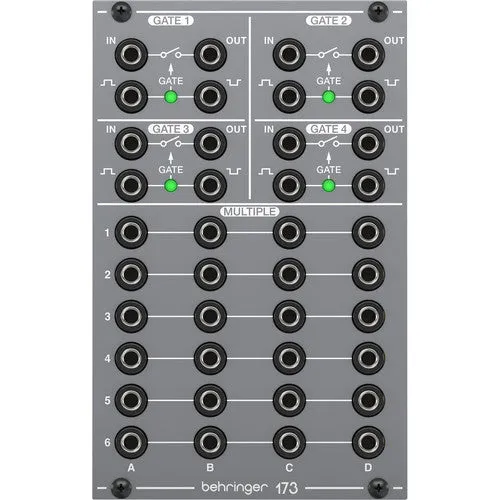

The Behringer 173 Quad Gate and Multiple is an authentic reproduction based on the original Roland System 100M circuitry in Eurorack form. Each of the four independent signal gates (switches) utilize buffered inputs and outputs for immediate signal switching. This provides users with the option to choose between a control gate operation, non-inverting (active high) input, or an inverting (active low) input.
Each of the four 6-channel multiples have floating parallel connections for optimal signal integrity. Send out your signal to other modules to help you create more intricate patches and deliver more compelling sounds from one source. The 173 includes four rack screws and a ribbon cable to connect to a Eurorack modular power supply (sold separately).
Specifications
- Quad Signal Gate/Multiple module from the '80s
- Authentic reproduction of original System 100M circuitry
- Four signal gates (switches) with buffered audio inputs and outputs for immediate signal switching
- Gates feature control inputs for positive and negative triggers plus LED indicators
- Six-channel multiples, each with four floating parallel connectors for optimal signal integrity
- 16 HP
- Power: 40 mA 12 V, 40 mA -12 V
- Includes ribbon power cable and four mounting screws
