Features:

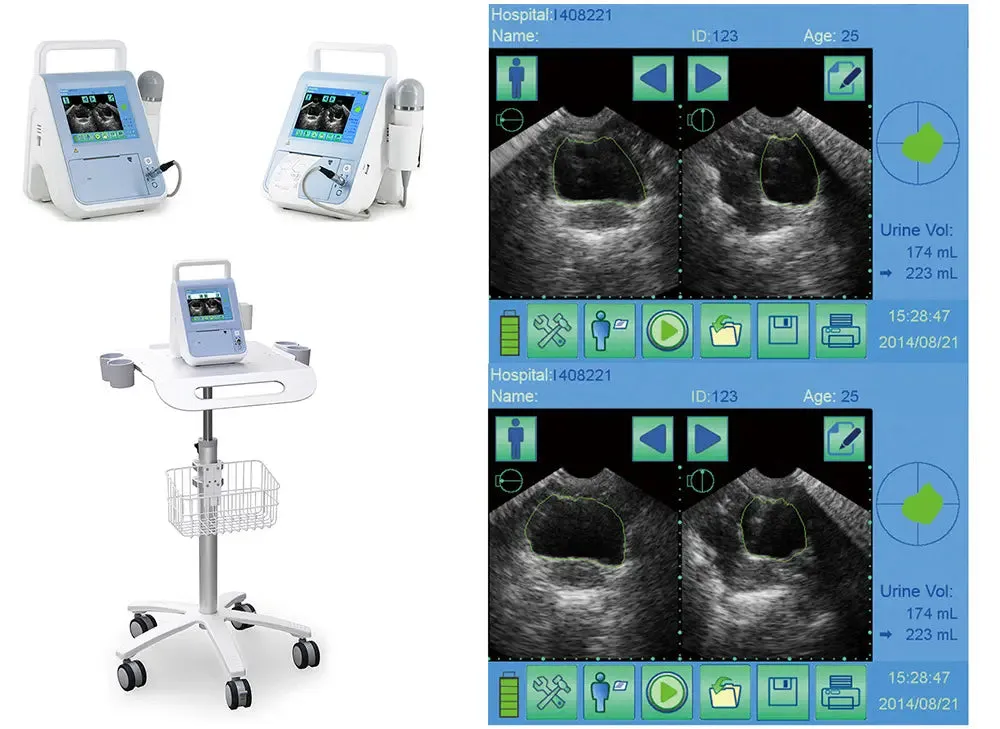

1. 7″ Color LED touch screen.
2. More accurate measurement, scan time < 4s.
3. Easily review 12 frames of scan images.
4. Built-in thermal printer for easy printing.
5. USB port support massive data storage and software update.
6. Multi-language customized(English, French, Russian, Spanish, Portuguese, Norway).
7. Medical services: Urology; Obstetrics-Gynecology; Geriatrics; Pediatrics; Rehabilitation; Surgical; Operation Room; Recovery Room; Emergency; Intensive Care; Extended Care.
8. Effects: Diagnose urinary retention and evaluate many common urological conditions; Prevent unnecessary catheterisation; Reduce rates of urinary tract infection; Monitor post-operative recovery; Help caregivers manage and treat incontinence; Reduce costs and save staff time.
Technical Specification:
|
Probe frequency |
2.5 MHz |
|
Volume calculating reference plane |
12 plane, interval 15° |
|
Volume display resolution, ml |
1 ml |
|
Volume measuring scale |
20 ml～999 ml |
|
Volume measuring accuracy |
20 ml～99 ml, Error ≤ ±15 ml |
|
Volume measuring accuracy |
100 ml～999 ml, Error ≤ ±15% |
|
Power supply |
AC 100 – 240 V, 50-60Hz |
|
Input |
DC 12V 3.0A |
|
Main unit dimension |
Approx 200×168×165 (mm，L×W×H) |
|
Main unit weight |
Approx 1.7 kg（without any accessories） |
Package Includes:
|
Main unit |
1 pc |
|
2.5 MHz probe |
1 pc |
|
Power adapter |
1 pc |
|
Li-battery with working time about 7 hours |
1 pc |
|
Touch pen |
2 pcs |
|
Optional configuration |
Battery charger; Foot switch; Trolley; Verification cup |
