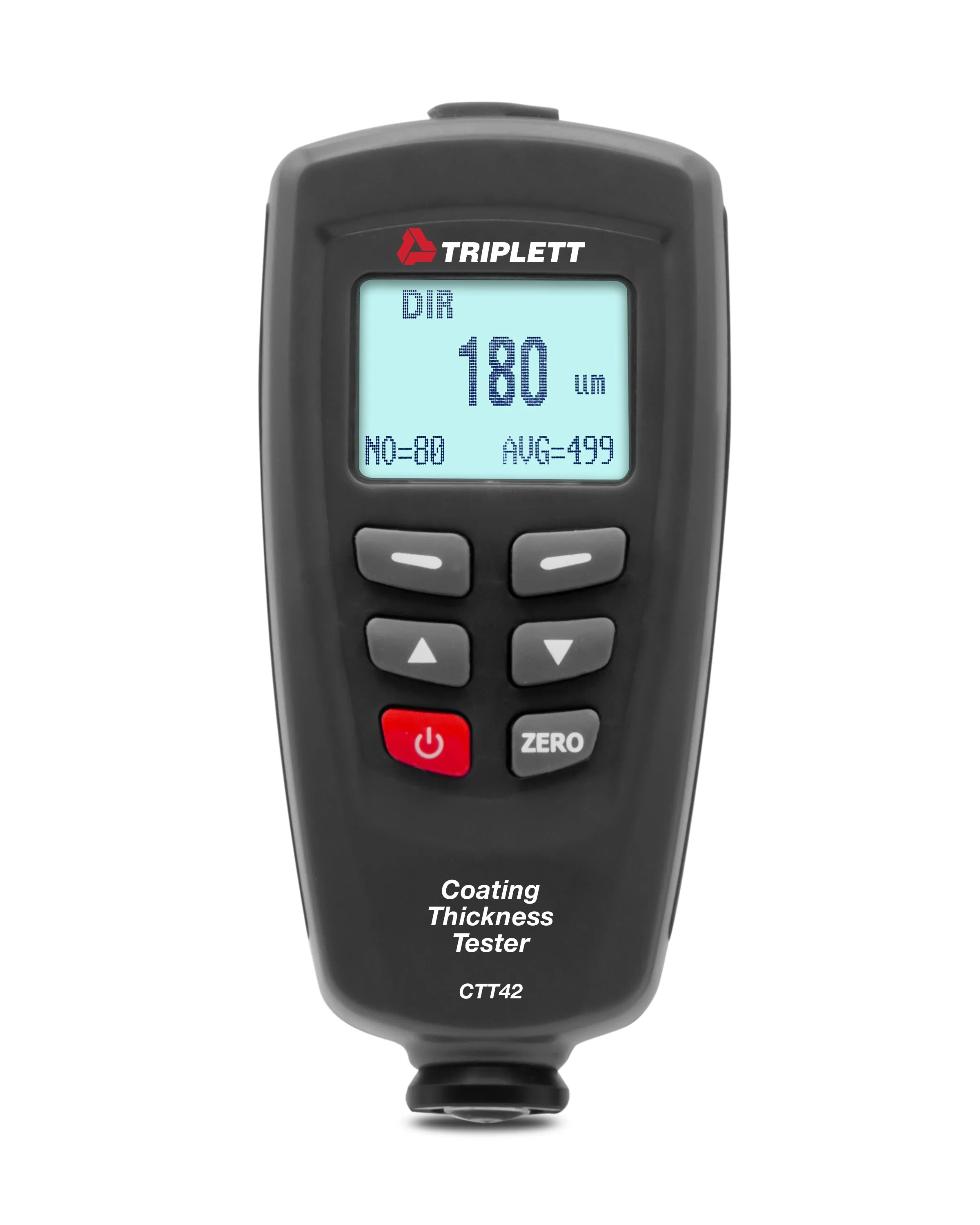

The Triplett Model CTT42 Coating Thickness Tester uses smart automatic recognition of ferrous (magnetic induction) and non-ferrous (eddy current measurement) substrates. Ideal for paint shops and electroplaters, chemical, automobile, shipbuilding, and aircraft industries. Use in the laboratory, workshop, or field.
DESCRIPTION

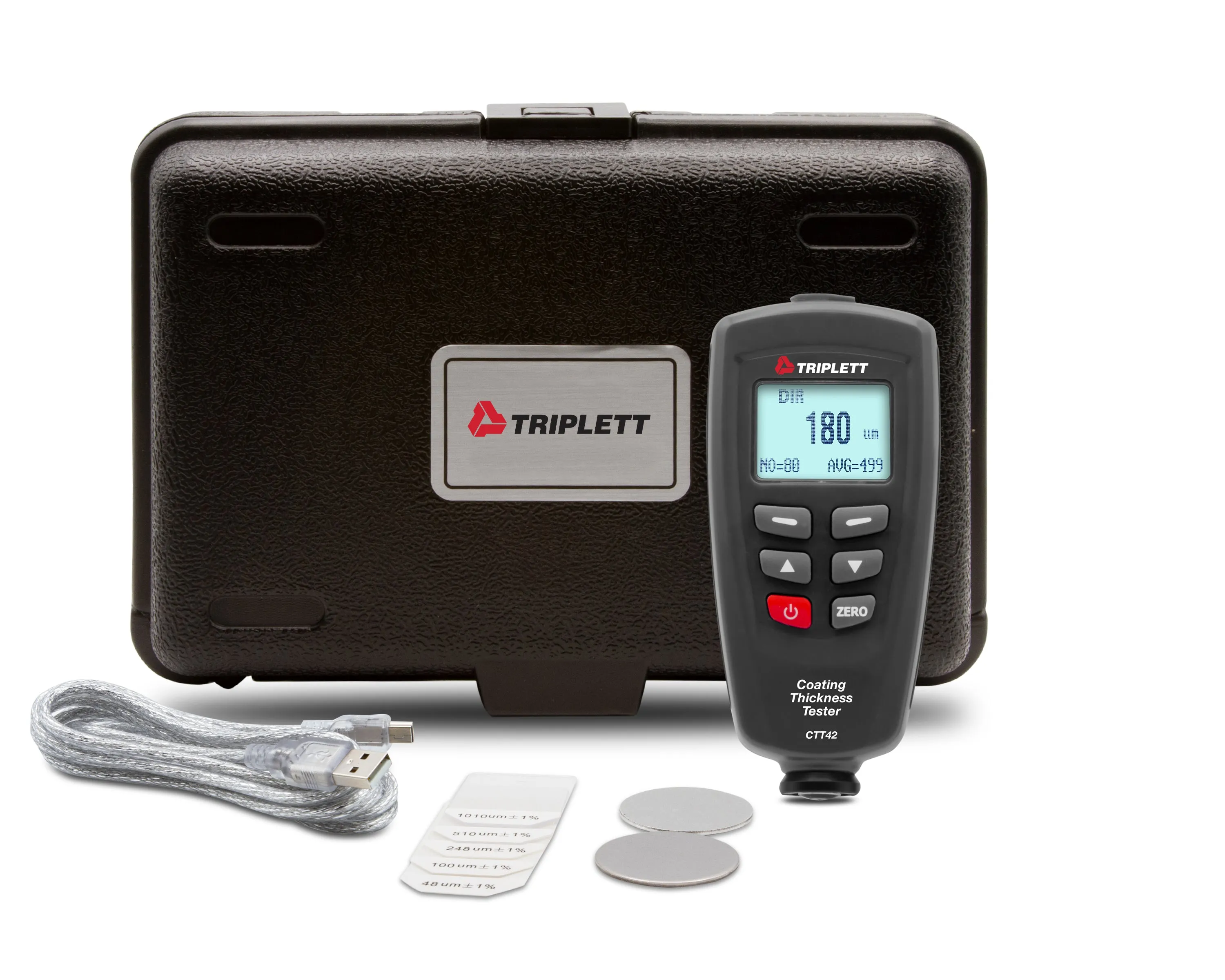

The Triplett Model CTT42 Coating Thickness Tester uses smart automatic recognition of ferrous (magnetic induction) and non-ferrous (eddy current measurement) substrates. Ideal for paint shops and electroplaters, chemical, automobile, shipbuilding, and aircraft industries. Use in the laboratory, workshop, or field. It has an easy-to-use menu, 8 level adjustable backlight, user-programmable high/low alarms, min/max/average, two point calibration with Zero adjust, two measuring modes (single, continuous), and two working modes (direct and group). Built-in memory stores up to 400 readings (80 direct and 320 group). Readings can be transferred to a PC via the USB interface. Includes two AAA batteries, USB cable, Calibration Iron, Calibration Aluminum, Precision Standards, and pouch case. 1-year warranty.
Features
- Smart automatic recognition of ferrous and non-ferrous substrates
- Magnetic induction for ferrous substrates
- Eddy current measurement for non-ferrous substrates
- Easy-to use menu system
- Two measuring modes: Single and Continuous
- Two working modes: Direct and Group
- Two point calibration with Zero adjust
- Memory storage up to 400 readings (80 Direct and 320 Group)
- User-programmable high/low alarms
- Min/Max/Average, one or two point calibration
Specifications
| Ferrous | Non-Ferrous | |
| Measuring Range | 0 to 1250μm; 0 to 49mils |
0 to 1250μm; 0 to 49mils |
| Resolution | 0.1μm (0.004mils) | 0.1μm (0.004mils) |
| Accuracy | ±3% | ±3% |
| Minimum Curvature Radius | 1.5mm (59.06mils) | 3mm (118.1mils) |
| Minimum Diameter | 7mm (275.6mils) | 5mm (196.9mils) |
| Minimum Thickness | 0.5mm (19.69mils) | 0.3mm (11.81mils) |
| Sample Rate | Selectable 1 second to 24 hours | |
| PC Interface | USB port | |
| Power | 2 AAA batteries | |
| Dimensions | 4.3 x 2.0 x 1.0” (110 x 50 x 23mm) | |
| Weight | 3.9oz (100g) | |
