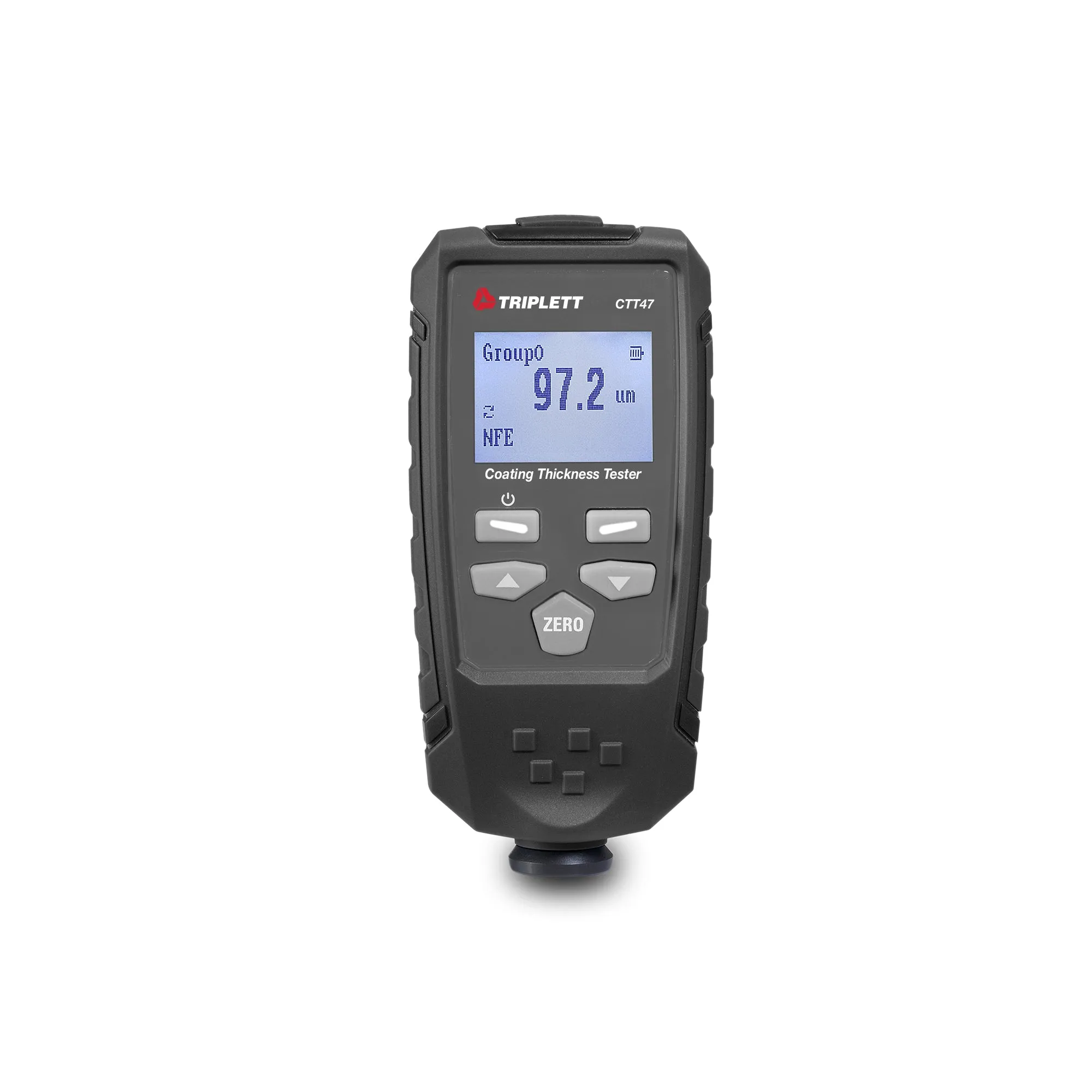

Name: Coating Thickness Tester with USB - (CTT47)
SKU: 1291386

Product Details ＋

DESCRIPTION

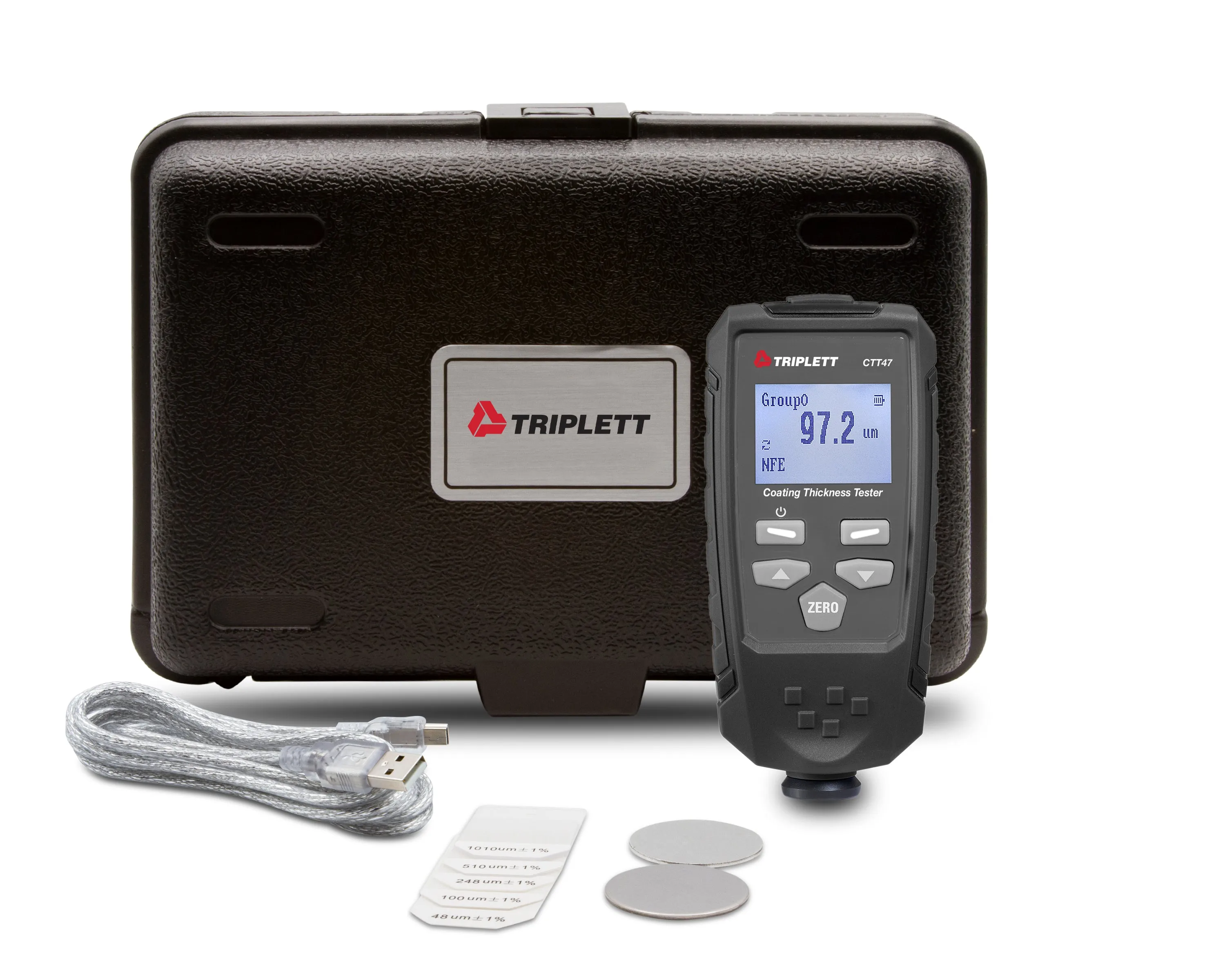

The Triplett Model CTT47 Coating Thickness Tester with USB uses smart automatic recognition of ferrous (magnetic induction) and non-ferrous (eddy current measurement) substrates. Ideal for paint shops and electroplaters, chemical, automobile, shipbuilding, and aircraft industries. Use in the laboratory, workshop, or field. It has an easy-to-use menu, 8 level adjustable backlight, two point calibration with Zero adjust, and two working modes: Direct and Group. Built-in memory stores up to 1500 readings (30 Group readings). Readings can be transfered to a PC via the USB interface. Includes two AAA batteries, USB cable, Calibration Iron, Calibration Aluminum, Precision Standards, and pouch. 1-year warranty.

Features

Smart automatic recognition of ferrous and non-ferrous substrates
Magnetic induction for ferrous substrates
Eddy current measurement for non-ferrous substrates
Easy-to use menu system
Two working modes: Direct and Group
Two point calibration with Zero adjust
Memory storage up to 1500 readings (30 Group readings)
Data transfer to PC via USB interface
8 level adjustable backlight
Low battery indicator

Specifications

	Ferrous	Non-Ferrous
Measuring Range	0 to 1350μm (0 to 53mils)	0 to 1350μm (0 to 53mils)
Resolution	0.1μm (0.004mils)	0.1μm (0.004mils)
Accuracy	±2.5%	±2.5%
Minimum Curvature Radius	1.5mm (59.06mils)	3mm (118.1mils)
Minimum Diameter	7mm (275.6mils)	5mm (196.9mils)
Minimum Thickness	0.5mm (19.69mils)	0.3mm (11.81mils)
Sample Rate	Selectable 1 second to 24 hours
PC Interface	USB port
Power	2 AAA batteries
Dimensions	4.7 x 2.4 x 1.25” (120 x 62 x 32mm)
Weight	6.8oz (175g)
