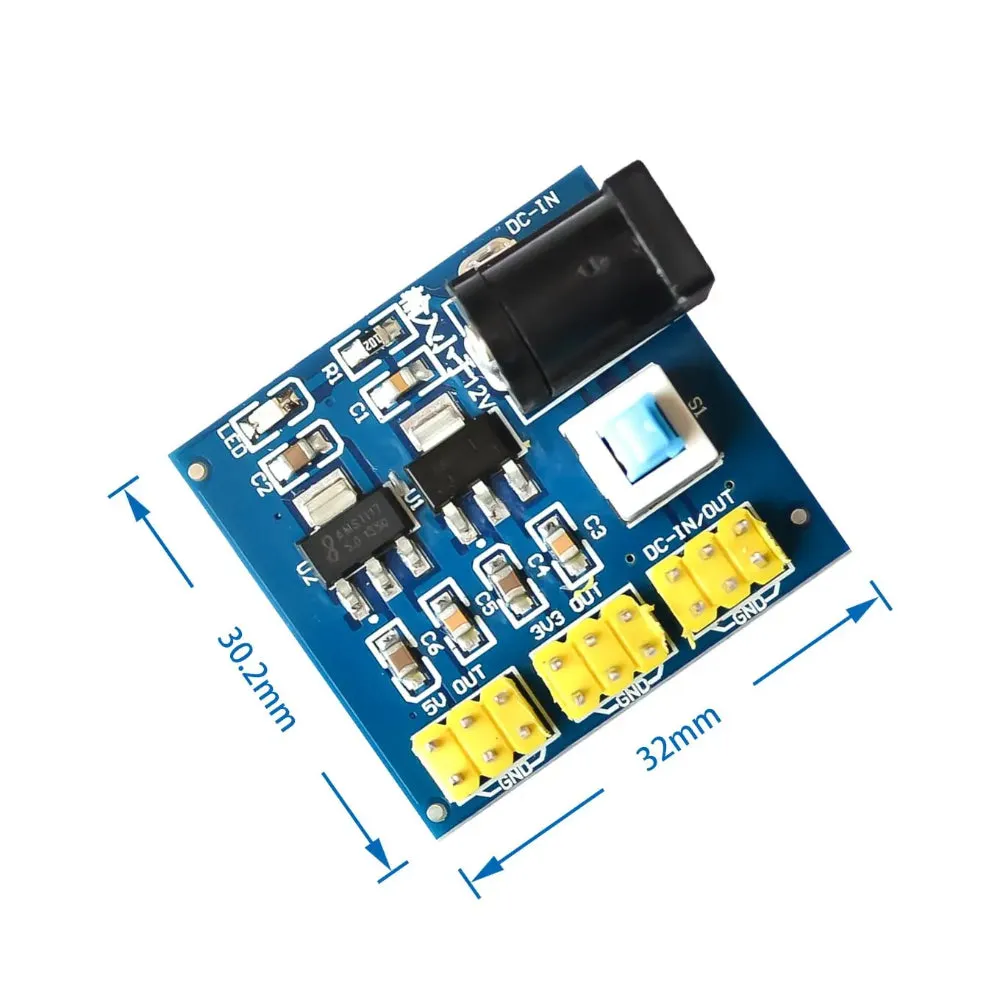

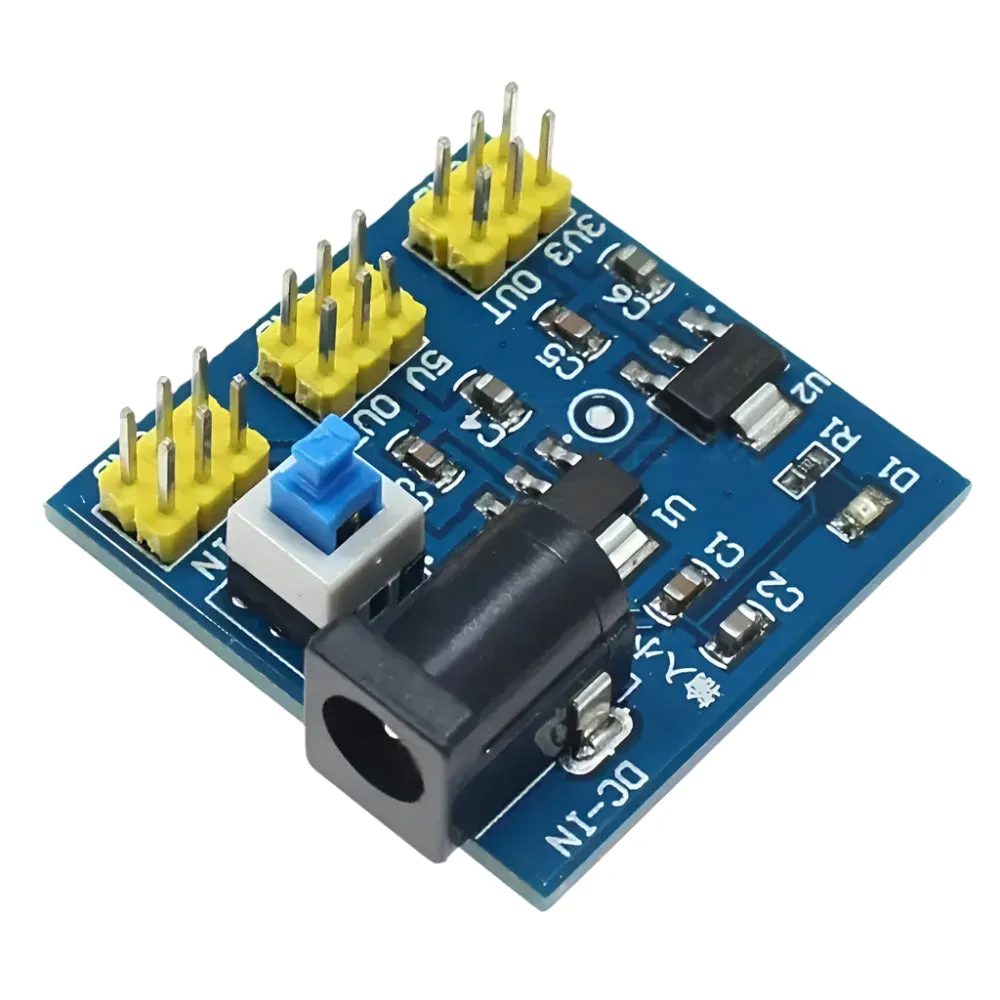

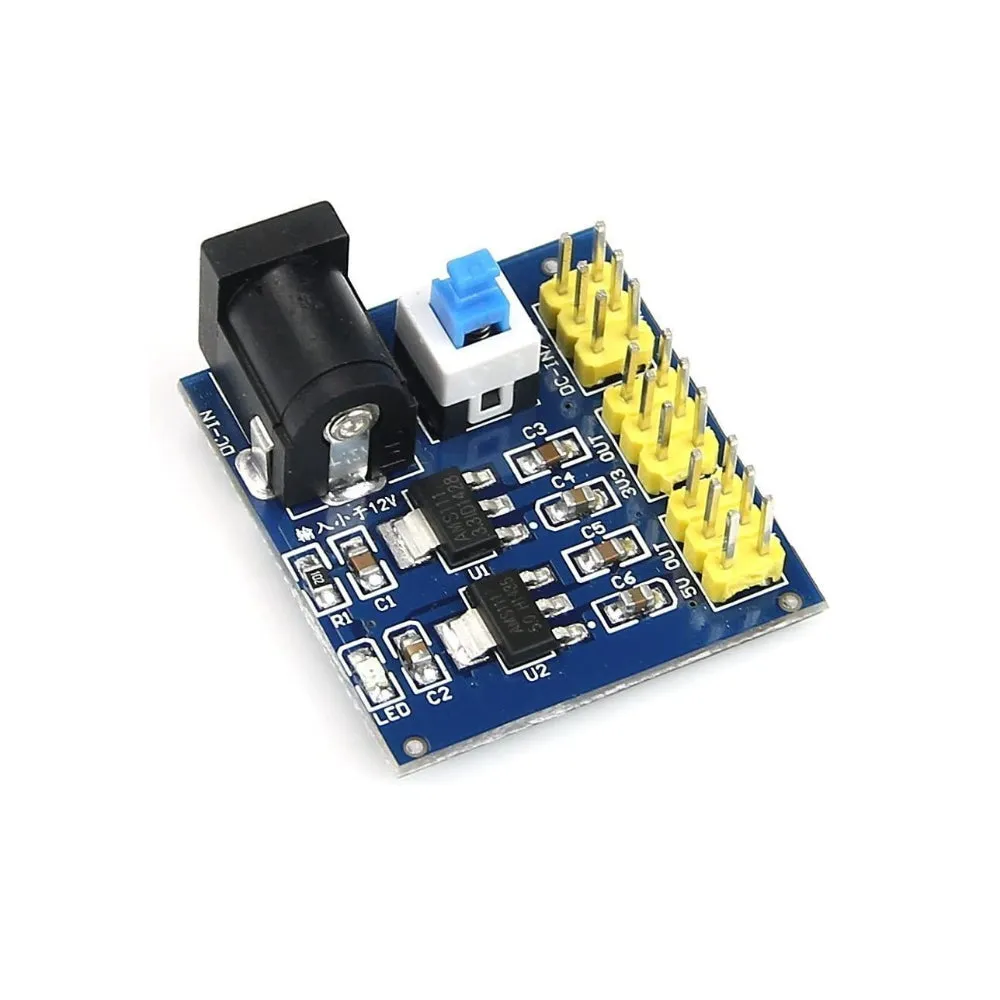

Product Details
＋
A DC-DC power module is an electronic device that converts a direct current (DC) source from one voltage level to another. Specifically, a DC-DC 12V to 3.3V 5V power module is designed to step down a 12V input to provide multiple output voltages, typically including 3.3V and 5V. This module is essential in applications where devices require different operating voltages, enabling a single power source to meet various power requirements efficiently.
High Efficiency: Efficient power conversion, often achieving efficiency rates above 90%, reducing energy loss and heat generation.
Compact Design: Small form factor suitable for integration into various electronic projects and devices.
Overcurrent Protection: Protects connected devices by limiting the current output to prevent damage due to excessive current.
Thermal Protection: Automatically shuts down the module if it overheats, ensuring safe operation.
Short Circuit Protection: Prevents damage by cutting off the output in case of a short circuit.
Wide Input Voltage Range: Can operate over a range of input voltages, typically from 10V to 16V.
Adjustable Outputs: Some modules allow fine-tuning of the output voltage through onboard potentiometers.
Stable Output: Provides stable and regulated output voltages despite input voltage or load conditions fluctuations.
Low Ripple: Ensures a clean output with minimal electrical noise, suitable for sensitive electronic components.
Portable Electronics: Powers various components within portable devices such as handheld gadgets, wearables, and battery-operated equipment.
IoT Devices: Supplies stable power to Internet of Things (IoT) devices which often require multiple voltage levels.
Features:
Multiple Output Voltages: Provides 3.3V, 5V, and sometimes additional voltages (like 12V) simultaneously from a 12V input.High Efficiency: Efficient power conversion, often achieving efficiency rates above 90%, reducing energy loss and heat generation.
Compact Design: Small form factor suitable for integration into various electronic projects and devices.
Overcurrent Protection: Protects connected devices by limiting the current output to prevent damage due to excessive current.
Thermal Protection: Automatically shuts down the module if it overheats, ensuring safe operation.
Short Circuit Protection: Prevents damage by cutting off the output in case of a short circuit.
Wide Input Voltage Range: Can operate over a range of input voltages, typically from 10V to 16V.
Adjustable Outputs: Some modules allow fine-tuning of the output voltage through onboard potentiometers.
Stable Output: Provides stable and regulated output voltages despite input voltage or load conditions fluctuations.
Low Ripple: Ensures a clean output with minimal electrical noise, suitable for sensitive electronic components.
Applications:
Embedded Systems: Provides necessary voltages for microcontrollers, sensors, and other components in embedded systems.Portable Electronics: Powers various components within portable devices such as handheld gadgets, wearables, and battery-operated equipment.
IoT Devices: Supplies stable power to Internet of Things (IoT) devices which often require multiple voltage levels.
Features
- Output power on/off switch
- Two-row multiple-pin outputs, easy to use and connect
- Red LED illuminates when input DC power is supplied and output is turned ON
- Outputs
- 3.3V DC at 800mA maximum current
- 5.0V DC at 800mA maximum current
- 12V DC (the 12V output is directly connected to the input, i.e. with 12VDC input, this output will be 12VDC; with 9VDC input, this output will be 9VDC)
- Small and Handy Module
- Dual-side plate design
- Easy to use
Technical Details
- Input Voltage (V): 6 to 12
- Connector: 5.5mm Power Jack
- Output Voltage: 3.3V and 5V
- Error Voltage(V): 0.05
Package Includes
- 1 x DC-DC 12V to 3.3V 5V Power Module 3.3V 5V 12V Multiple Output Voltage Conversion
