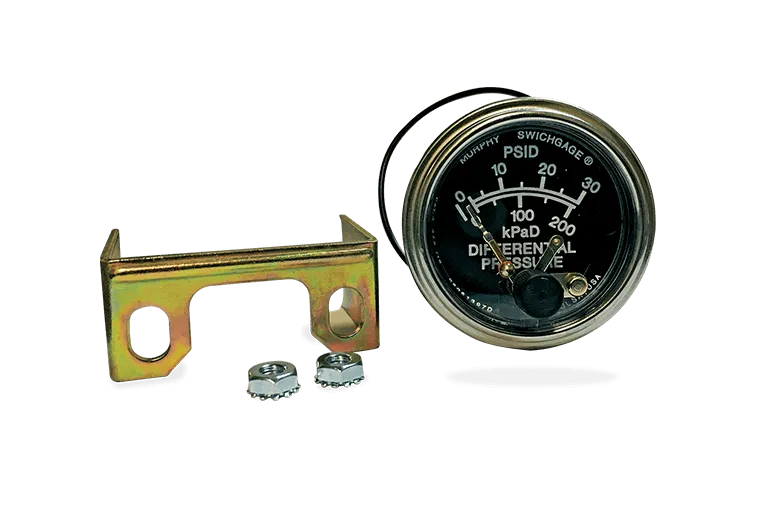

The Everfilt® Pressure Differential Gauge ( 2 in. / 51 mm dial ) are diaphragm-actuated, differential pressure-indicating gauges, with a built-in electrical switch. The Everfilt® Pressure Differential Gauge is proprietary to Everfilt® and also known as the Model 20DP.

PN: 1090

FEATURES:

• Constant Visual Indicators
• Durability for Rugged Applications
• Adjustable P.S.I.D. Limit Switch
• Adjustable Contact for Monitoring Range

PRODUCT DESCRIPTION:

The Everfilt® Pressure Differential Gauge is used for tripping alarms and/or shutting down equipment. It is intended to monitor and indicate oil, fuel or water filter restriction and can reduce risk of dangerously high pressure, which may rupture the filter, resulting in contaminants entering the system.
