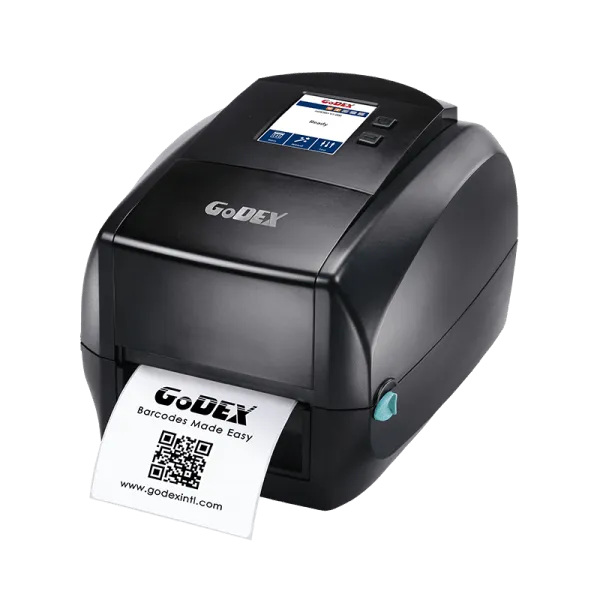

Desktop Printer RT823i / RT833i / RT863i
The Ultimate Printer for Your Creative Needs
The RT800i series has a variety of features that make it the perfect choice for any creative project. This series has a 3.2-inch color touchscreen LCD panel designed for ease of use. It leads the industry with 3 USB ports as a standardfeature, allowing extensive integration with several devices like flash drives, scanners, and keyboards for extended memory and standalone operation. The RT863i can produce high-quality prints with 600dpi resolution and a 300m ribbon capacity.
-

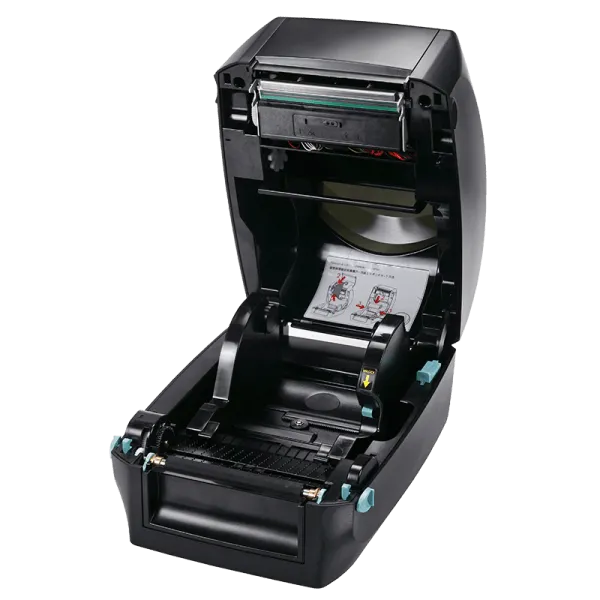

Ingenious Mechanism Design
-

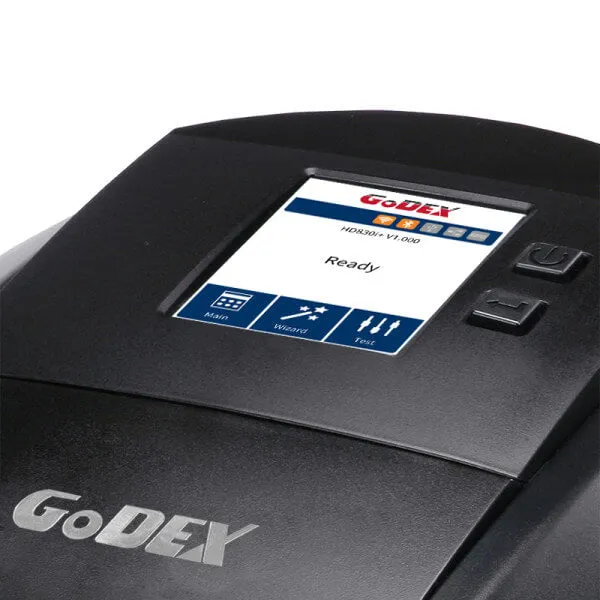

Intuitive 3.2” Touch Screen
-
Support Various Printing Resolution
-

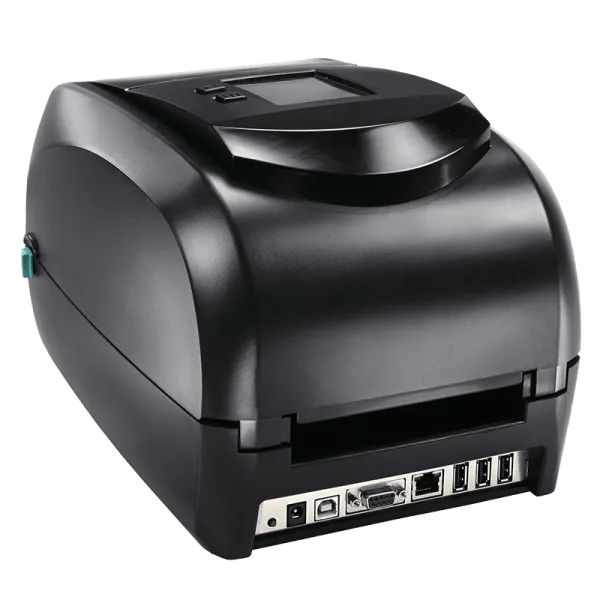

Multiple Connection Interfaces
-
Easy-to-Use Auto-Calibration Button
-
Large Memory
RT823i / RT833i / RT863i Printer Specification
Print Method |
Thermal Transfer / Direct Thermal |
Resolution |
203 dpi (8 dots/mm) / 300 dpi (12 dots/mm) / 600 dpi (24 dots/mm) |
Print Speed |
Up to 8 ips (203 mm/s) / Up to 6 ips (152 mm/s) / Up to 4 ips (102 mm/s) |
Print Width |
4.25” (108 mm) / 4.16” (105.7 mm) / 4.16” (105.7 mm) |
Print Length |
Min. 0.12” (3 mm)** ; Max . 279.53” (7100 mm) / Min. 0.12” (3 mm)** ; Max. 125.98” (3200 mm) / Min. 0.12” (3 mm)** ; Max . 31.5” (800 mm) |
Processor |
32 Bit RISC CPU |
Memory |
Flash 128 MB SDRAM 128 MB |
Interfaces |
• USB 2.0 (Type B)• Serial port (RS232)• Ethernet 10/100 Mbps• USB Host*3 (Type A) |
Ribbon |
Length: 984” (300 m)Width: Min. 1.18” (30 mm) – Max. 4.33” (110 mm)Core diameter: 2.67” (68 mm)Core diameter 1” (25.4 mm) |
Control Panel |
• Backlight 3.2" Touch Screen LCD• Calibration button• Control Key : FEED• Power on/standby button |
