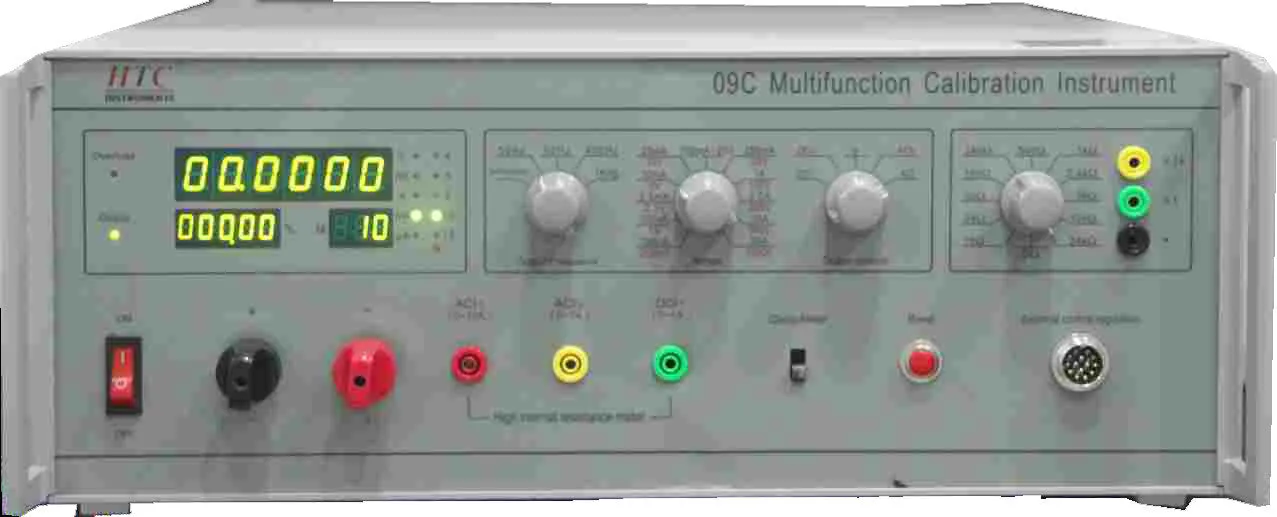

The HTC CC-09 is a multifunction calibration instrument designed to provide precise calibration for DC and AC voltage, current, and resistance measurements. Equipped with a 5½ digit LED display, it offers high-resolution readings essential for accurate calibration tasks. This instrument is ideal for calibrating various measuring devices, including voltmeters, ammeters, and resistance meters, ensuring their accuracy and reliability.

Key Features:

• High-Resolution Display: 5½ digit LED display for clear and precise readings.
• Comprehensive Calibration: Supports calibration of DC and AC voltage, current, and resistance.
• Wide Output Range: Provides a broad range of output values to accommodate various calibration needs.
• High Accuracy: Ensures precise calibration with minimal error margins.
• User-Friendly Interface: Simplifies the calibration process with intuitive controls.
• Robust Construction: Built to withstand the demands of laboratory and field calibration tasks.

Specifications:

• Output Ranges:
  • Voltage:
    • DC: 250mV, 1V, 2.5V, 5V, 10V, 25V, 50V, 100V, 250V, 500V, 1000V
    • AC: 250mV, 1V, 2.5V, 5V, 10V, 25V, 50V, 100V, 250V, 500V, 1000V
  • Current:
    • DC: 100μA, 500μA, 2.5mA, 10mA, 25mA, 100mA, 250mA, 1A, 2.5A, 10A, 50A
    • AC: 100μA, 500μA, 2.5mA, 10mA, 25mA, 100mA, 250mA, 1A, 2.5A, 10A, 50A
  • Resistance:
    • 10Ω, 24Ω, 50Ω, 100Ω, 240Ω, 500Ω, 1kΩ, 2.4kΩ, 5kΩ, 10kΩ, 24kΩ, 50kΩ, 100kΩ, 240kΩ, 500kΩ, 1MΩ, 2.4MΩ, 5MΩ, 10MΩ, 24MΩ, 50MΩ
• Accuracy:
  • Voltage:
    • DC: ±(0.02% of reading 0.01% FS)
    • AC: ±(0.05% of reading 0.02% FS)
  • Current:
    • DC: ±(0.03% of reading 0.02% FS)
    • AC: ±(0.05% of reading 0.03% FS)
  • Resistance:
    • ±(0.2% of reading 20mΩ)
• Ripple: <0.2%
• Power Supply: 230V AC, 50 (60) Hz
• Dimensions: 190mm (L) x 480mm (W) x 545mm (H)
• Weight: Approximately 25 kg

Applications:

• Laboratory Calibration: Ensures the accuracy of laboratory measuring instruments.
• Field Calibration: Suitable for on-site calibration of various devices.
• Quality Control: Maintains measurement standards in manufacturing processes.
• Research and Development: Assists in developing and testing new measurement technologies.
