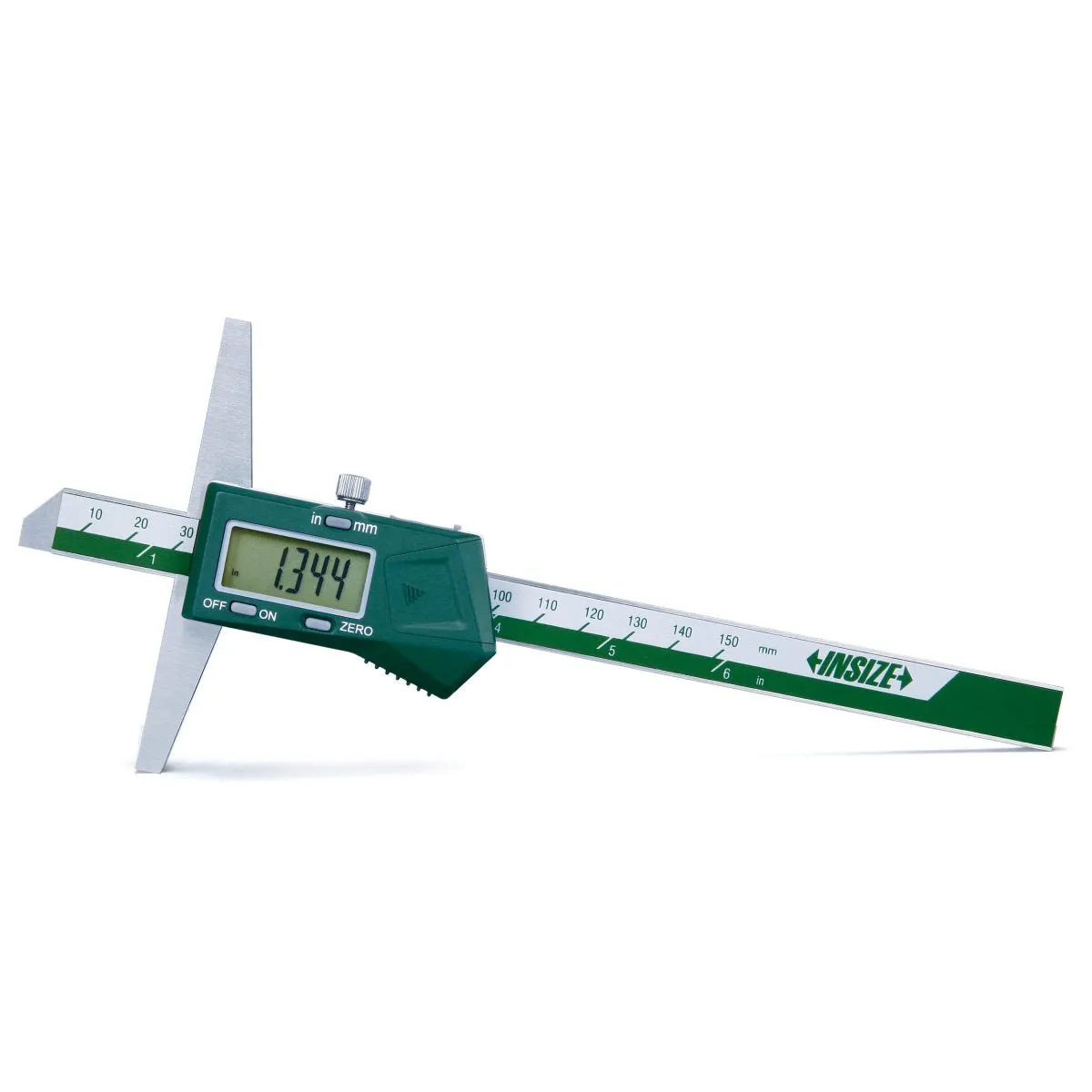

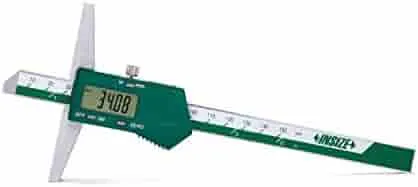

The Insize 1141-200 Digital Depth Gauge offers precise and reliable depth measurements for a wide range of engineering, manufacturing, and quality control applications. With a measuring range of 0-200 mm (0-8 inches), this tool is ideal for measuring the depth of holes, slots, and recesses. Its stainless steel construction ensures durability, while automatic power management and data output capability enhance efficiency.

Key Features:

• Measuring Range: 0-200 mm (0-8 inches).
• Resolution: 0.01 mm / 0.0005 inches for detailed measurements.
• Accuracy: ±0.03 mm for reliable performance.
• User-Friendly Buttons:
  • On/Off Button to control power.
  • Set Button for zeroing and calibration.
  • MM/INCH Conversion to switch between metric and imperial units.
• Automatic Power On/Off: Activates when moved and powers off when idle to conserve battery life.
• Stainless Steel Construction: Provides excellent durability and corrosion resistance for long-term use.
• Battery-Powered: Operates on a CR2032 battery (included) for extended operation.
• Data Output Capability: Supports optional data cables (Codes 7315-21, 7302-21) for seamless data transfer.
• Standards Compliance: Meets DIN862 standards for precision and accuracy.

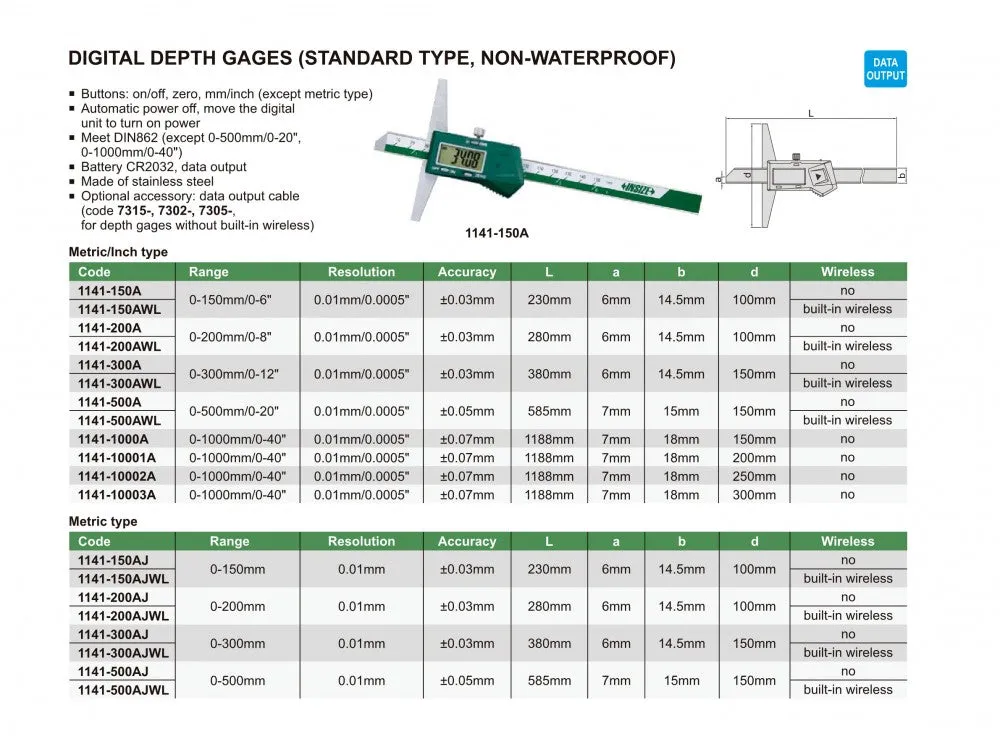

Specifications:

• Measuring Range: 0-200 mm (0-8 inches)
• Resolution: 0.01 mm / 0.0005 inches
• Accuracy: ±0.03 mm
• Material: Stainless steel
• Battery Type: CR2032 (included)
• Data Output: Compatible with optional data cables (Codes 7315-21, 7302-21)
• Compliance: Meets DIN862 standards

What’s Included:

• Insize 1141-200 Digital Depth Gauge
• CR2032 Battery (pre-installed)
• Instruction Manual
