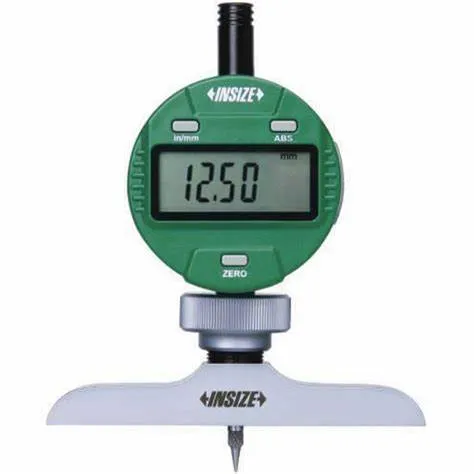

The Insize 2141-201A Digital Dial Depth Gauge is a precision measurement tool designed for accurately gauging depths up to 300 mm (12 inches). Featuring a digital display, stainless steel base, and a wide range of measurement accessories, this gauge is ideal for machining, quality control, and inspection tasks. Its high accuracy and versatility make it a must-have for professionals requiring reliable depth measurements.

Key Features:

• Measurement Range: 0-300 mm (0-12 inches).
• Resolution: 0.01 mm (0.0005 inches), ensuring high precision.
• Accuracy: ±20 μm, suitable for demanding applications.
• Digital Indicator Stroke: 12.7 mm (0.5 inches).
• Button Functions: On/Off, Zero, mm/inch conversion, ABS mode, data preset, and change measuring direction.
• Stainless Steel Base: Durable and stable for accurate measurements.

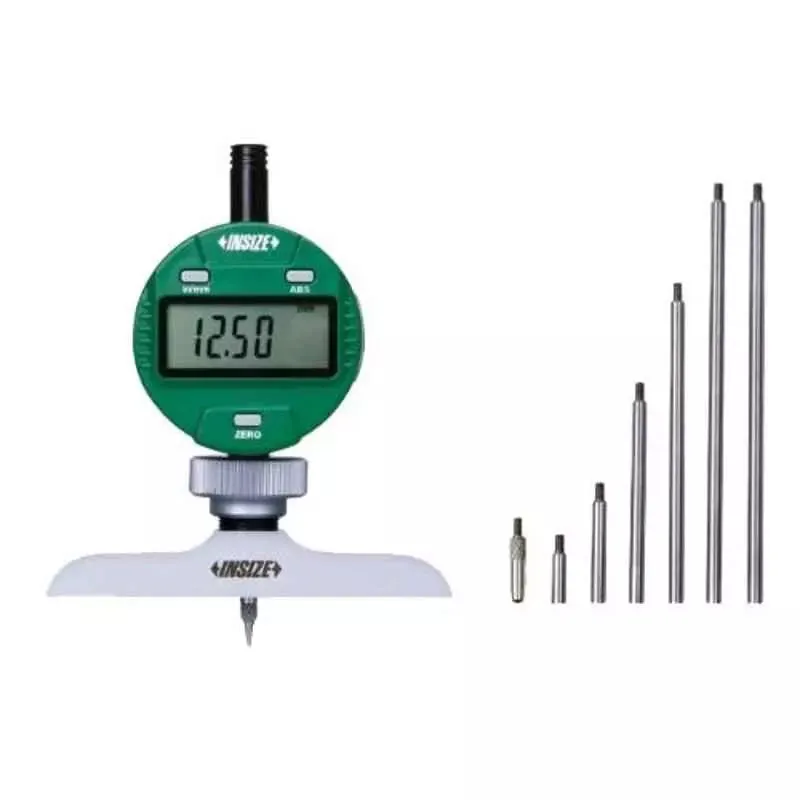

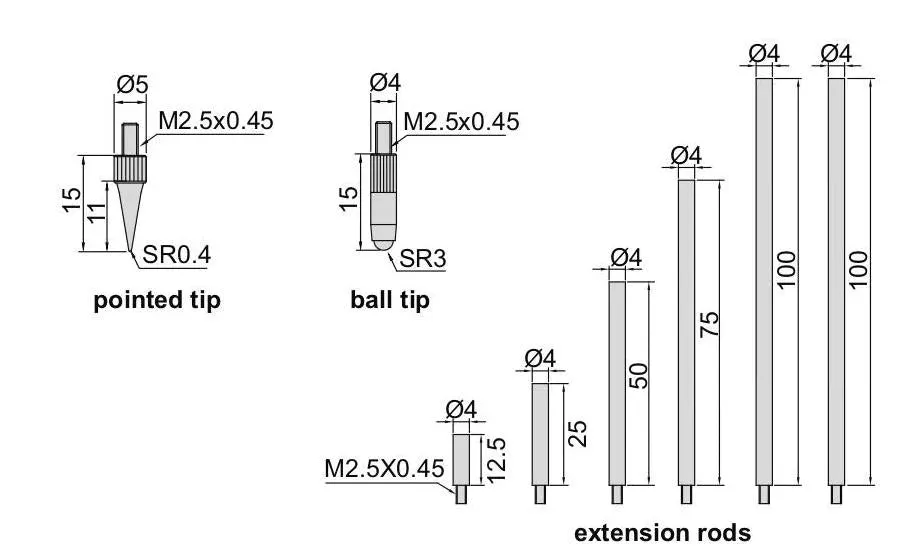

• Extension Rods: Includes rods of 12.5 mm, 25 mm, 50 mm, 75 mm, and 100 mm (two pieces).
• Interchangeable Tips: Supplied with pointed and ball tips for versatile measurement applications.
• Data Output: Compatible with data output cables (optional) for streamlined data management.
• Battery: Powered by a CR2032 battery with an extended operational life.
• Optional Accessories: Granite extension holder (code 2141-10), data output cables (codes 7315-50M, 7302-50M).

Specifications:

• Model Number: 2141-201A
• Measurement Range: 0-300 mm / 0-12 inches
• Base Length: 63 x 17 mm
• Indicator Stroke: 12.7 mm
• Resolution: 0.01 mm (0.0005 inches)
• Accuracy: ±20 μm
• Material: Stainless steel base

Box Includes:

• 1 x Insize 2141-201A Digital Dial Depth Gauge
• 1 x CR2032 Battery
• Extension rods (12.5 mm, 25 mm, 50 mm, 75 mm, 100 mm x 2)
• Interchangeable tips (pointed and ball tips)
• Storage case
• User manual

Applications:

• Machining: Measuring the depth of holes, slots, and recesses during production.
• Quality Control: Verifying dimensional tolerances in manufactured components.
• Inspection: Accurate depth measurements for maintenance and testing.
• Engineering and Tooling: Assisting in design and calibration of precision components.
