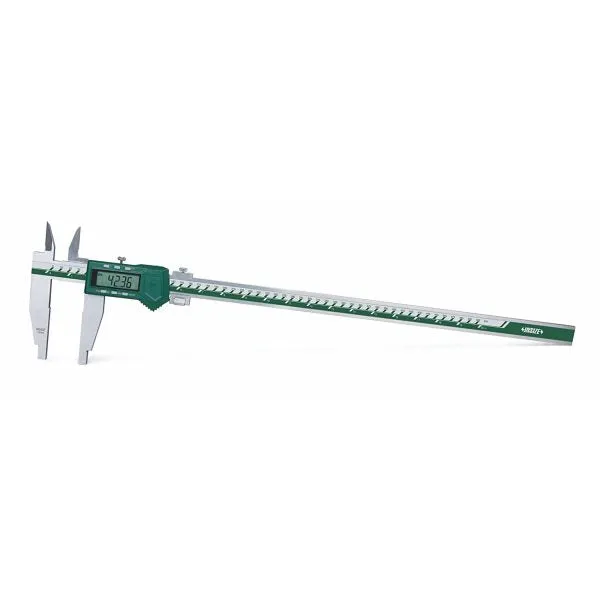

The Insize 1136-601 Digital Vernier Caliper is a high-precision, long-range measuring tool built for professional use in manufacturing, engineering, and quality control. With a measuring range of 0-600 mm (0-24 inches) and an upper jaw for specialized measurements, this caliper offers both precision and versatility. Its data output capability allows seamless integration with digital systems, making it ideal for advanced applications.

Key Features:

• Graduation/Resolution: 0.01 mm / 0.0005 inches for accurate and reliable measurements.
• Material: Made from stainless steel for enhanced durability and corrosion resistance.
• Upper Jaw Design: Provides flexibility for internal, external, and specialized measurements.
• Data Output Capability: Supports optional data cables (Codes 7315-22, 7302-22) for efficient digital data transfer and integration.
• Buttons and Functions:
  • On/Off Button to manage power.
  • Zero Reset Button for quick calibration.
  • MM/INCH Conversion for switching between metric and imperial units.
  • ABS Mode: Toggle between absolute and relative measurements.
  • Data Preset Function: Pre-set values for quick and specialized operations.
• Automatic Power On/Off: Turns on with movement and powers off when idle to conserve battery life.
• Battery-Powered: Operates on a CR2032 battery (included) for extended performance.

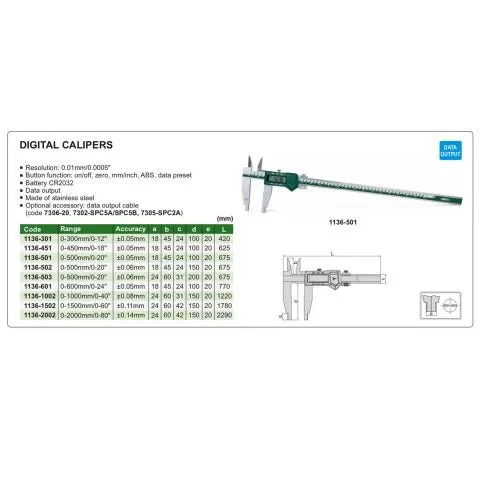

Specifications:

• Measuring Range: 0-600 mm (0-24 inches)
• Graduation/Resolution: 0.01 mm / 0.0005 inches
• Material: Stainless steel
• Data Output: Compatible with optional cables (Codes 7315-22, 7302-22)
• Battery Type: CR2032 (included)
• Upper Jaw: Designed for enhanced measurement capabilities

What’s Included:

• Insize 1136-601 Digital Vernier Caliper
• CR2032 Battery (pre-installed)
• Instruction Manual
