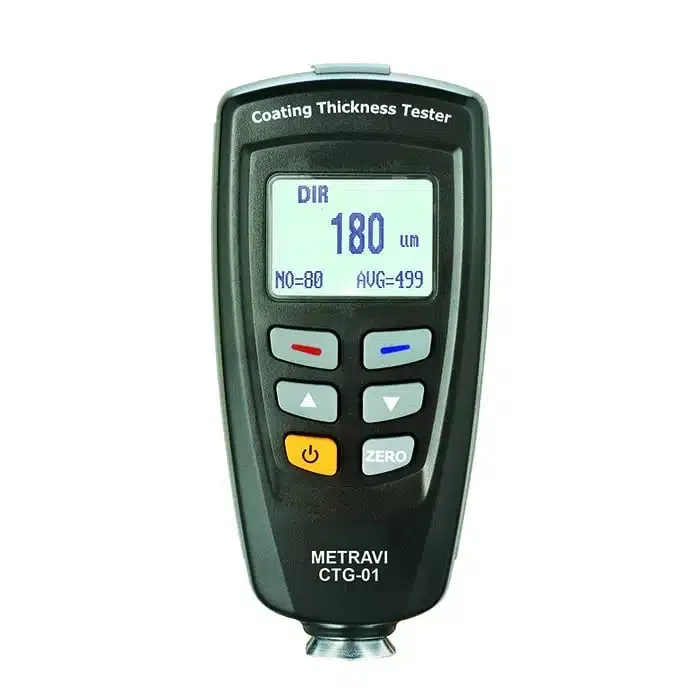

The Metravi CTG-01 Coating Thickness Gauge is a versatile and precise instrument designed for measuring the thickness of coatings on both ferrous and non-ferrous materials. With dual functionality, it operates using magnetic induction and eddy current principles, automatically selecting the appropriate mode based on the probe type. It features a user-friendly interface and is ideal for industrial applications where accurate coating thickness measurement is crucial.

Key Features:

• Dual Measurement Principles: Works on magnetic induction for ferrous materials and eddy current principle for non-ferrous materials.
• Automatic Mode Selection: Easily selects the required probe type through the MENU system for seamless operation.
• High Precision & Accuracy: Measures with a precision of 0.1 µm / 0.001 mils and guarantees accuracy within ±3% 1 µm for ferrous materials and ±3% 1.5 µm for non-ferrous.
• User-Friendly Interface: Easy-to-navigate MENU system for zero calibration, settings, and data management.
• USB Interface: Enables connection to a PC for detailed analysis and report generation.
• Portable Design: Compact and lightweight, making it suitable for both field and lab applications.
• Standards Compliant: Conforms to GB/T 4956-1985, GB/T 4957-1985, JB/T 8393-1996, JJG 889-95, and JJG 818-93 standards for reliable performance.

Specifications:

• Measurement Ranges:
  • Ferrous: 0 ~ 1250 µm / 0 ~ 49.21 mils
  • Non-Ferrous: 0 ~ 1250 µm / 0 ~ 49.21 mils
• Guaranteed Tolerance:
  • Ferrous: ±3% 1 µm / ±3% 0.039 mils
  • Non-Ferrous: ±3% 1.5 µm / ±3% 0.059 mils
• Precision:
  • Ferrous: 0.1 µm / 0.001 mils
  • Non-Ferrous: 0.1 µm / 0.001 mils
• Minimum Curvature Radius:
  • Ferrous: 1.5 mm / Non-Ferrous: 3 mm
• Diameter of Minimum Area:
  • Ferrous: 7 mm / Non-Ferrous: 5 mm
• Basic Critical Thickness:
  • Ferrous: 0.5 mm / Non-Ferrous: 0.3 mm

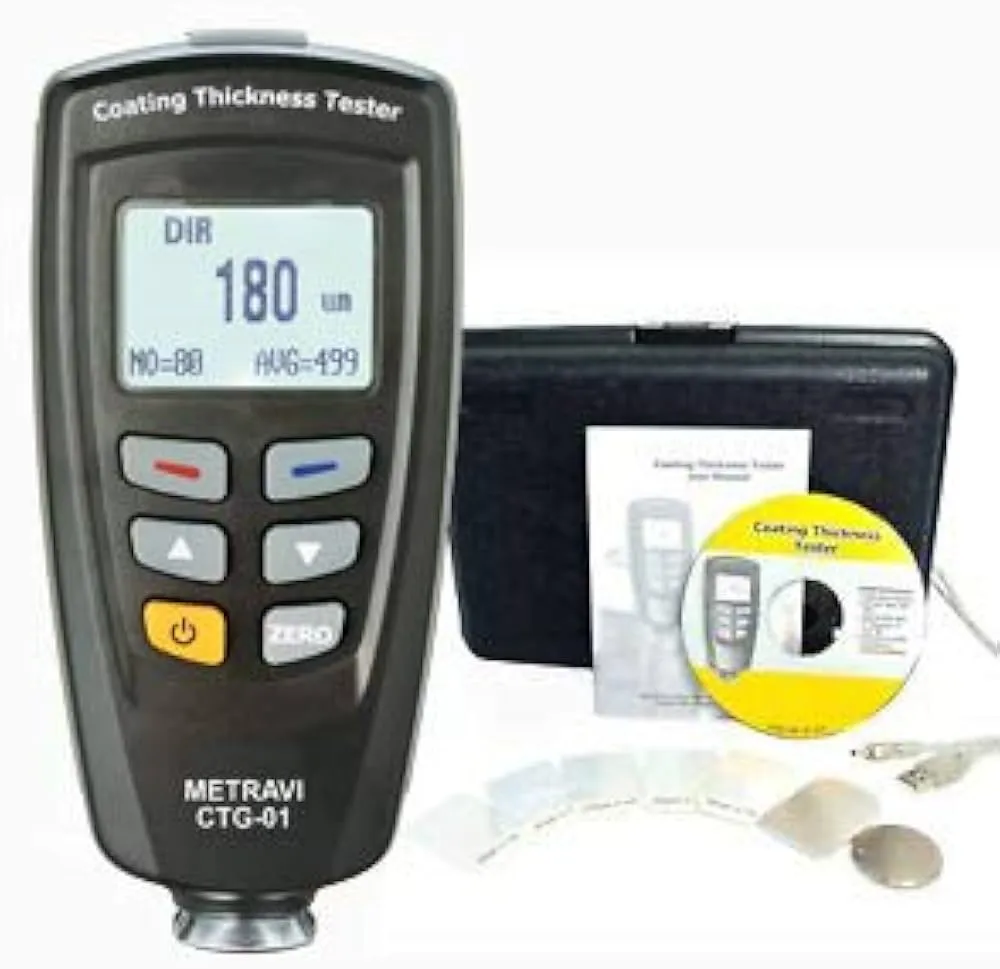

Box Including:

• Metravi CTG-01 Coating Thickness Gauge
• Interface Cable & Analysis Software
• User Manual
• Carrying Case

Applications:

• Suitable for measuring paint, varnish, and other coatings on steel and non-ferrous substrates.
• Ideal for use in automotive, aerospace, marine, and manufacturing industries.
• Useful for quality control and assurance in production lines and maintenance operations.
