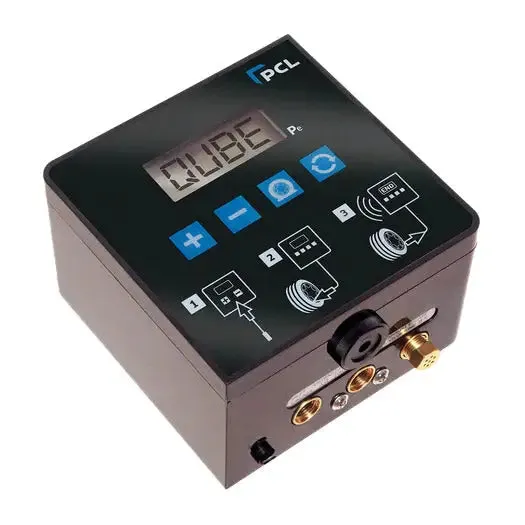

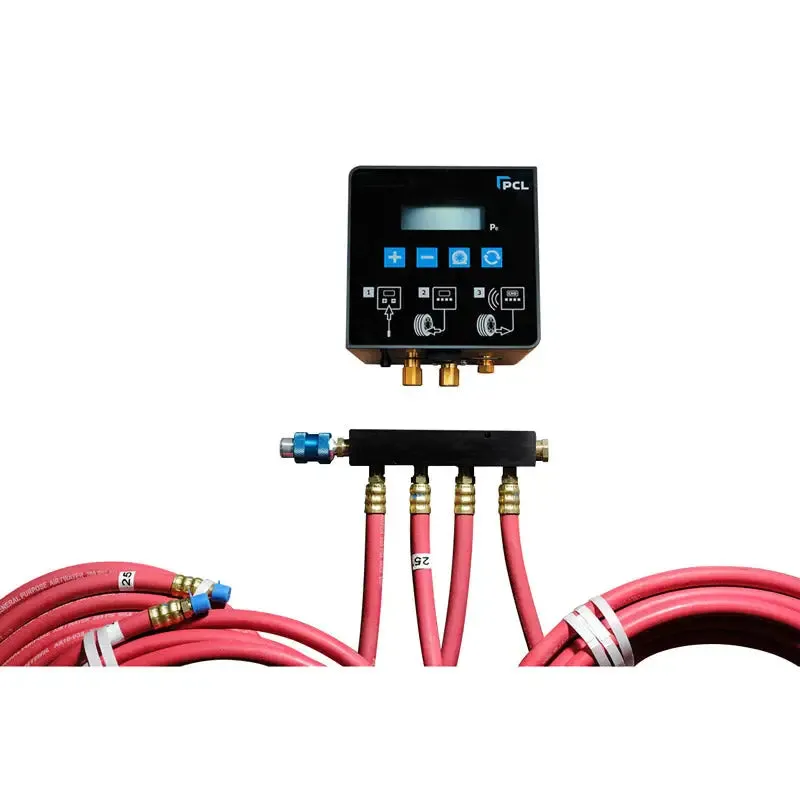

Name: PCL Accura QUBE 4X4 Mini Automatic Tire Inflators
SKU: 980995

Product Details ＋

PCL ACCURA QUBE is designed to be a cost-effective, space-saving, entry-level automatic tire inflation unit. The ACCURA QUBE a firm favorite in many garages and tire shops. All the customer needs to do is pre-set the required pressure, place the connector on the tire, and let the inbuilt auto-start function do the rest.

Features:

Plug and play - with 3 pre-selectable application MODES: MODE 1 - Standard inflate/deflate, MODE 2 - Tire shop with over-pressure and MODE 3 - N2 fill and AIR to N2 conversion
Low and simple maintenance
Individually tested calibration certificate included
Touch Capacitive technology
Electronic pressure preset
Auto-start inflation
Clear display for easy readability
Ceramic sensor - accuracy to /- 0.5 of full-scale reading
Max. Supply Pressure: 217 PSI
Accurately inflates using hoses up to 164 ft. in length
Comprehensive diagnostics and error reporting
Low lifetime costs with proven electronics
Can be easily wall-mounted (indoor use only)

Specs:

Accuracy: Exceeds EC Directive 86/217 (to /- 0.5% of full scale reading)
Reading Accuracy: 0.1 bar / 1 psi / 5 kPa
Maximum Inlet Pressure: 15 bar / 217 psi / 1500 kPa
Max Inflation Pressure: 145 psi / 10 bar / 1000 kPa / 10.2 kg/cm2
Inflation Flow: 2,500 l/min (@10 bar supply)
Dimensions: 150 mm x 150 mm x 92 mm

Volt: 110v tire inflator (US plug)
Chuck Type: Close-End Single Lock-on Chucks

Hose: 25 ft

Weight: 8 lbs
