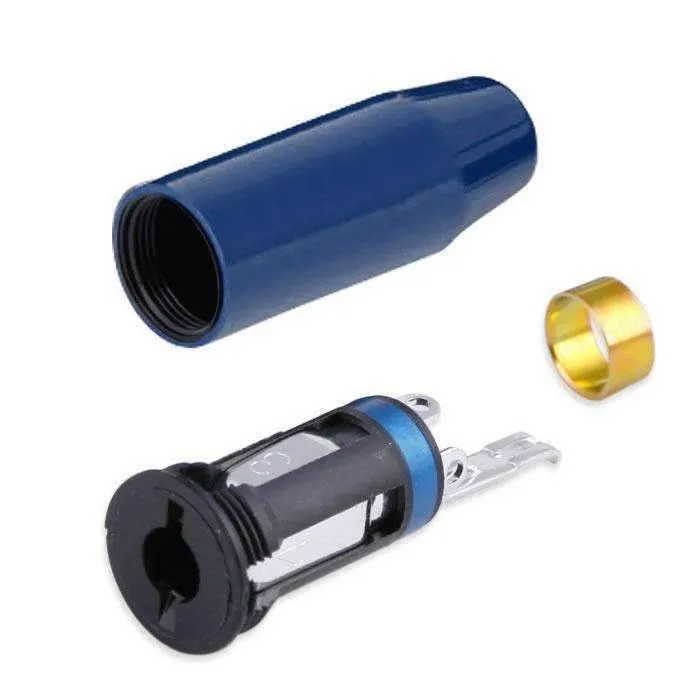

Military Grade Nexus Replacement Jack TJ-102.

Features:

In-Line Jack, Contacts Molded Into a Plastic Body, Accommodates Larger Cable Diameter.

Conductors - 4

Application - Ruggedized Commercial Military

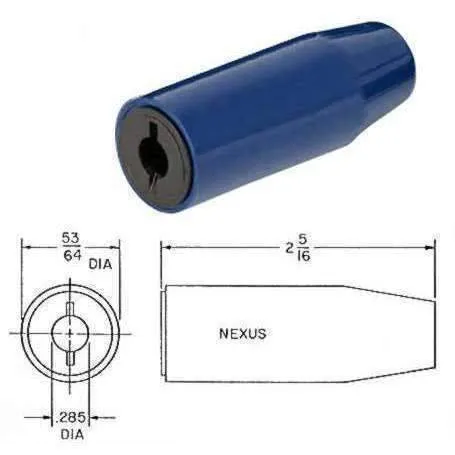

Overall Width - . 828 in

Overall Height - . 828 in

Overall Length - 2. 312 in

Contact Diameter - . 285 in

Shell Material - Plastic

Contact Material - Nickel Plated Beryllium Copper

Standard - MIL-C-9177

Alternate P/N - M9177/3-1 U-92A/U

Solder Contacts Terminals - Pre-tinned over Nickel Plating

Contact Resistance - <, . 02 O

Insulation Resistance - >, 1,000 mO

Dielectric Withstanding Voltage - M9177/3-1 U-92A/U

Insertion Force Maximum - 13 lb

Withdrawl Force - 6 to 10 lb

Product Description: Military Grade Nexus Replacement Jack TJ-102Pit Stop USA offers Rugged Radios Military Grade Nexus Replacement Jack TJ-102 NEXUS-TJ102-BLUE at low everyday prices. Be sure to check out all our products from Rugged Radios including Rugged Radios Headset Cables.

Whether you’re ripping through Baja in your UTV, hitting the single track with your friends on the weekend, or taking flight in your Cessna you need communications you can trust. With nearly 30 years experience in manufacturing high noise environment communications, Rugged Radios boasts a full line of communication products. From industrial job sites to agriculture to fire & safety - Rugged Radios offer Communications For Any Environment.

Product Descripton:

Nexus Jack

Military Grade

TJ-102

Sold Individually
