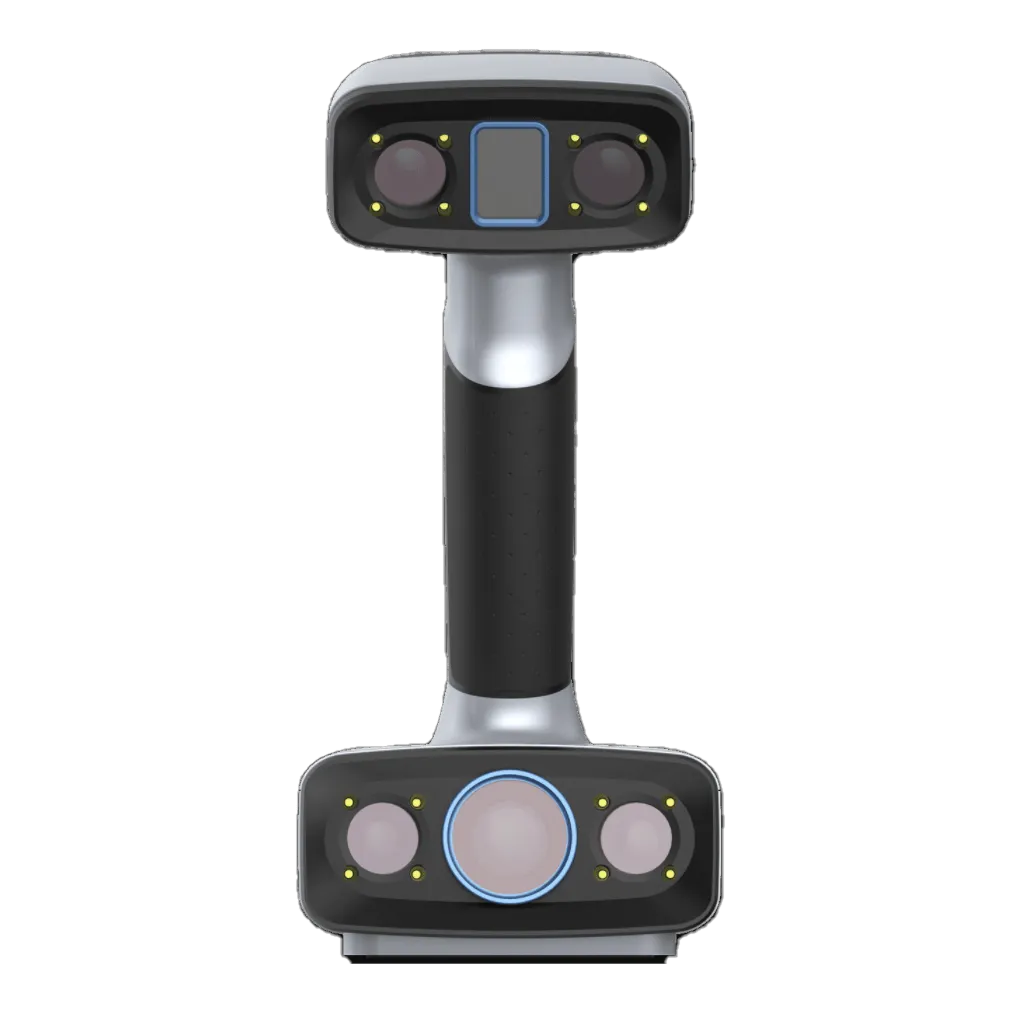

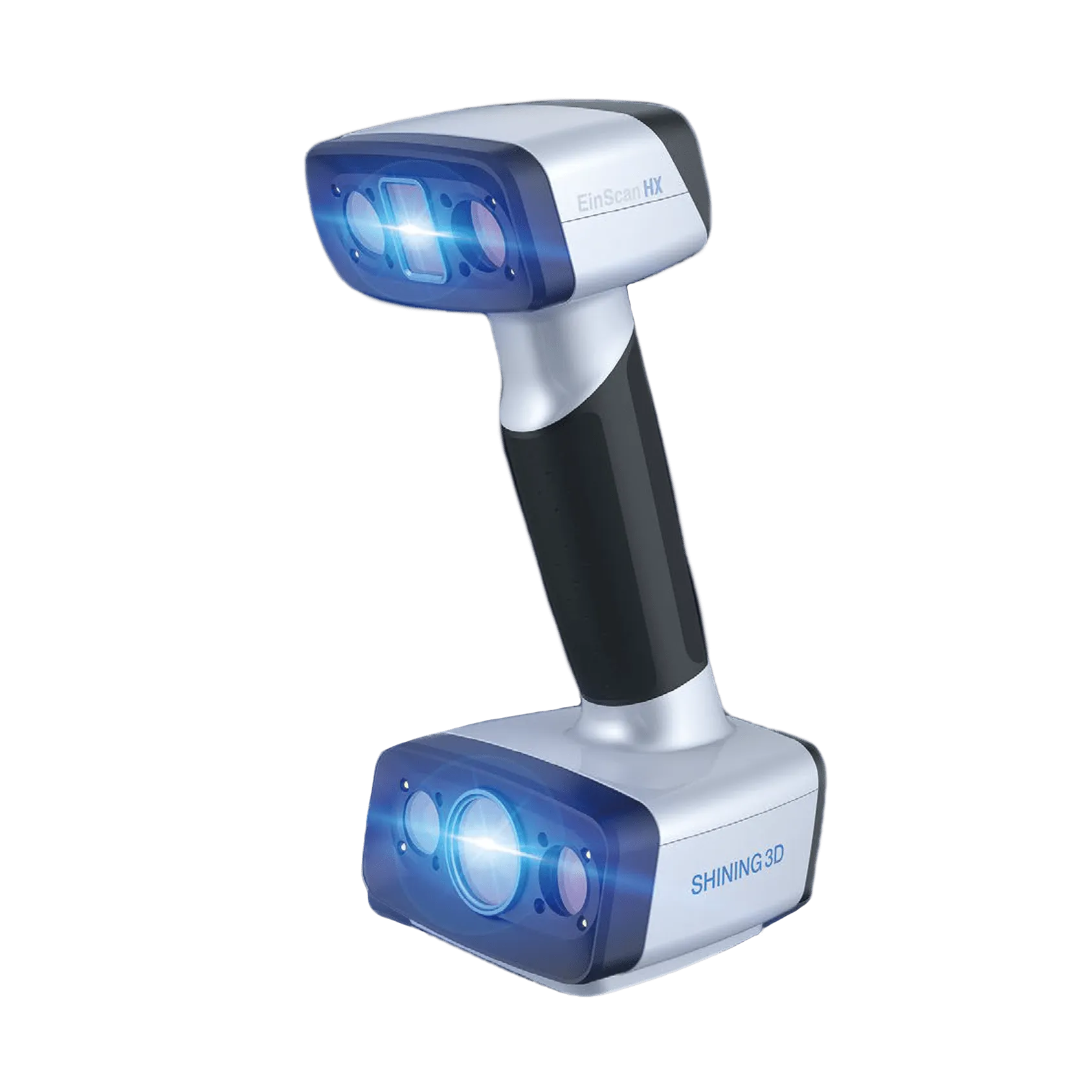

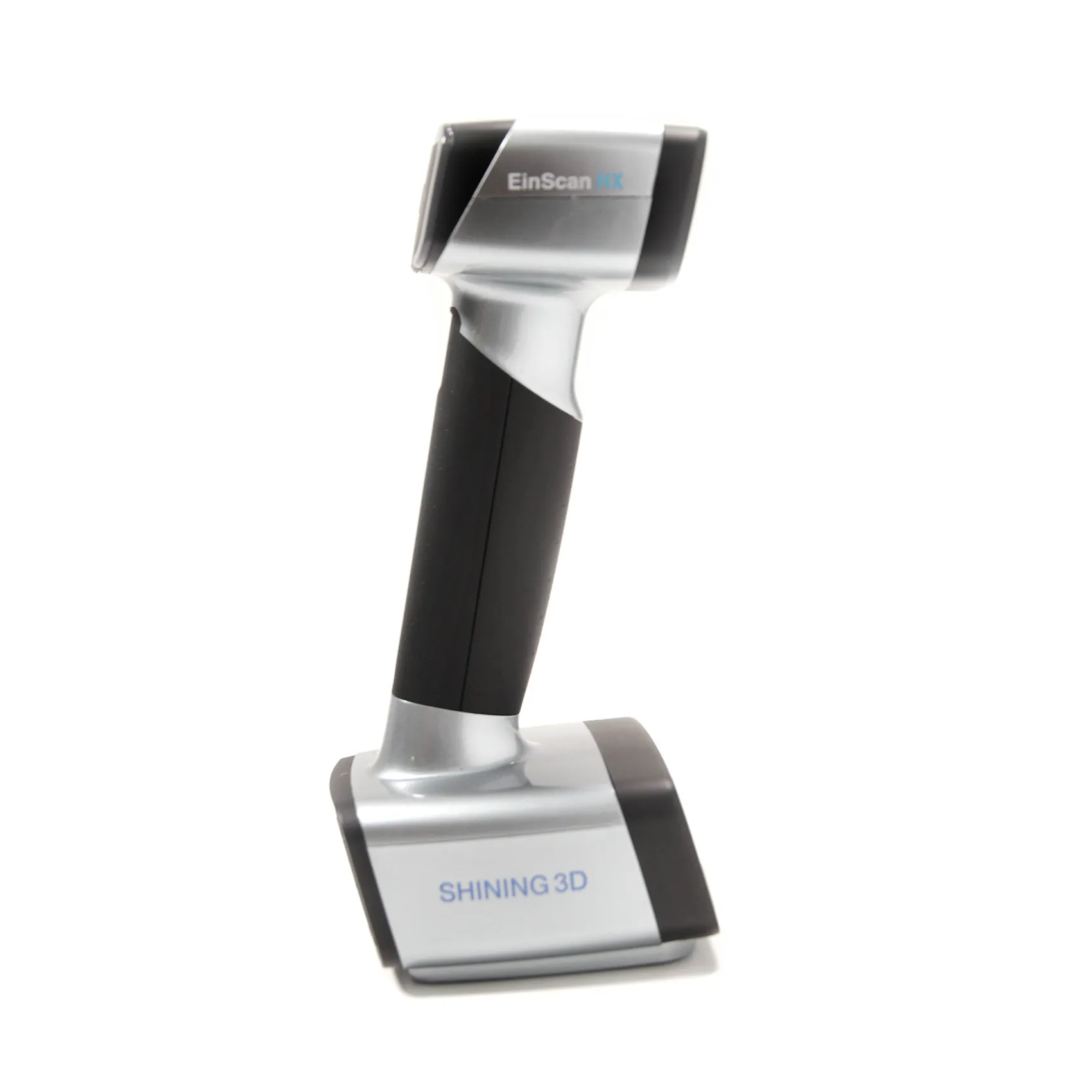

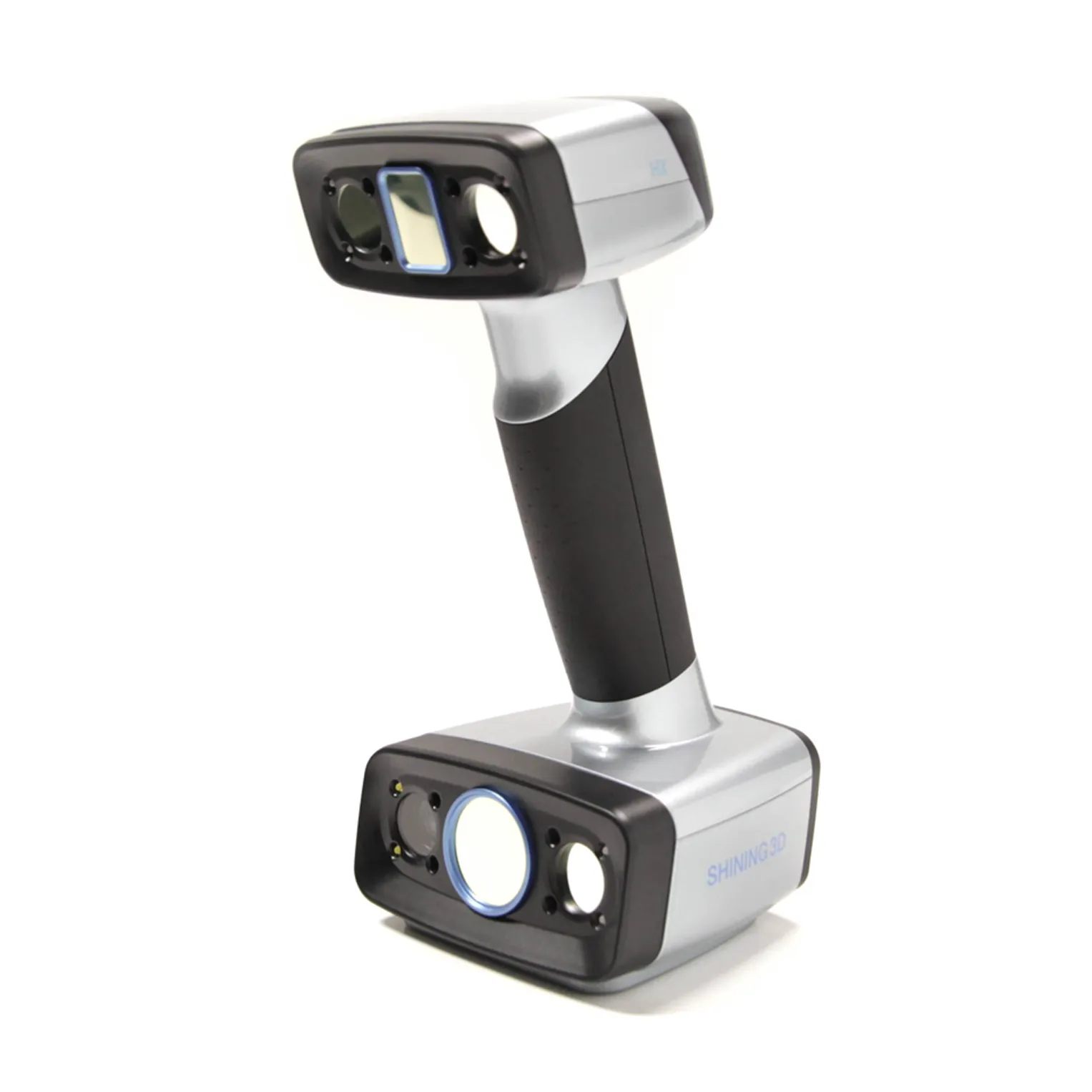

Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes, meeting multiple needs of users. High efficiency and reliable result give EinScan HX more application possibilities.
Please Note: The EinScan HX requires a Computer with a NVIDIA Graphics Card for use.
Processing speed of EinScan HX under Rapid Scan Mode is up to 1,200,000 points/s, and multiple blue laser lines under Laser Scan Mode makes scanning of most objects in minutes for reverse engineering, CAD/CAM, 3D printing and etc.
The high resolution and accuracy meet the needs of most industrial application for reverse engineering and measuring. Minimum point distance of 0.05mm; accuracy up to 0.04mm under laser mode.
EinScan HX is plug and play with user friendly software, which is easy to operate, no matter you are newbie or with professional experience in 3D scanning.
Hybrid Blue Laser & LED Light
Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.
Full Colour Scanning
With its built-in color camera and texture tracking technology, the EinScan HX can accurately capture and align texture information with the 3D geometry of the object being scanned. This is especially useful when trying to recreate the surface details and appearance of the original product.
Reverse Engineering Bundle
3D Systems and SHINING 3D have partnered together to bring you an all-in-one solution for your 3D scan to CAD needs. While modern CAD software is still quite limited in its ability to make use of 3D scan data, Shining3D brings you the tools needed to use the CAD system as part of your scan-based modeling workflow.
- Scan & Align Speed: 1,200,000 points/s 20FPS
- Scan Accuracy: Up to 0.05mm
- Volumetric Accuracy: 0.05 0.1mm/m
- Minimum Point Distance: 0.25mm - 3mm
- Safety: Blue LED Light (Eye Safe)
- Scan & Align Speed: 480,000 points/s 55FPS
- Scan Accuracy: Up to 0.04mm
- Volumetric Accuracy: 0.04 0.06mm/m
- Minimum Point Distance: 0.05mm-3mm
- Safety: Blue Laser Crosses (Class 1 - Eye Safe)
- Dimensions: 108mm x 110mm x 237mm
- Weight: 710g
- Data Transmission: USB 3.0

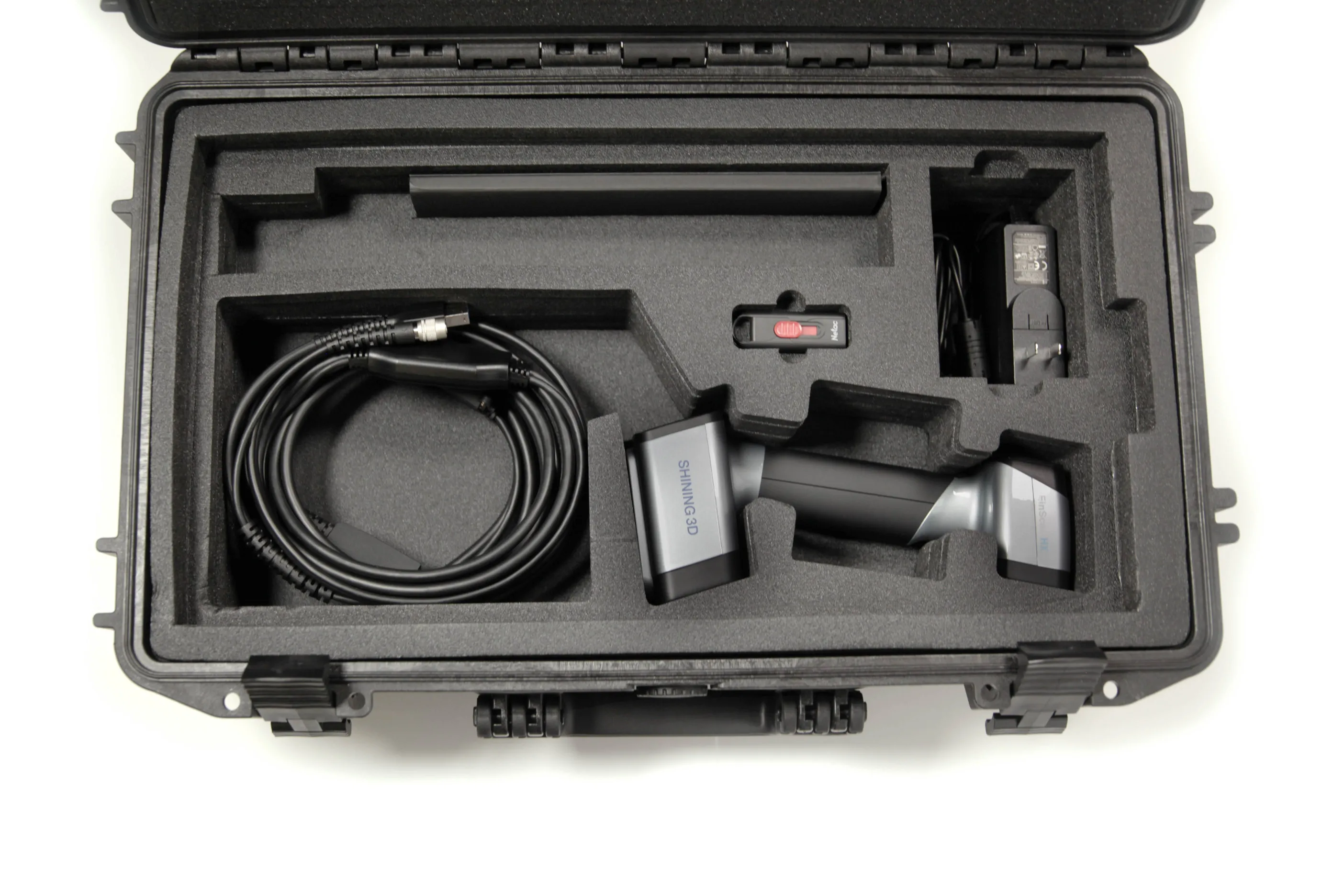

- EinScan HX LED & Laser Light 3D Scanner
- Markers
- Powerful Scanning Software
- Calibration Board
- Solidedge Shining 3D Edition

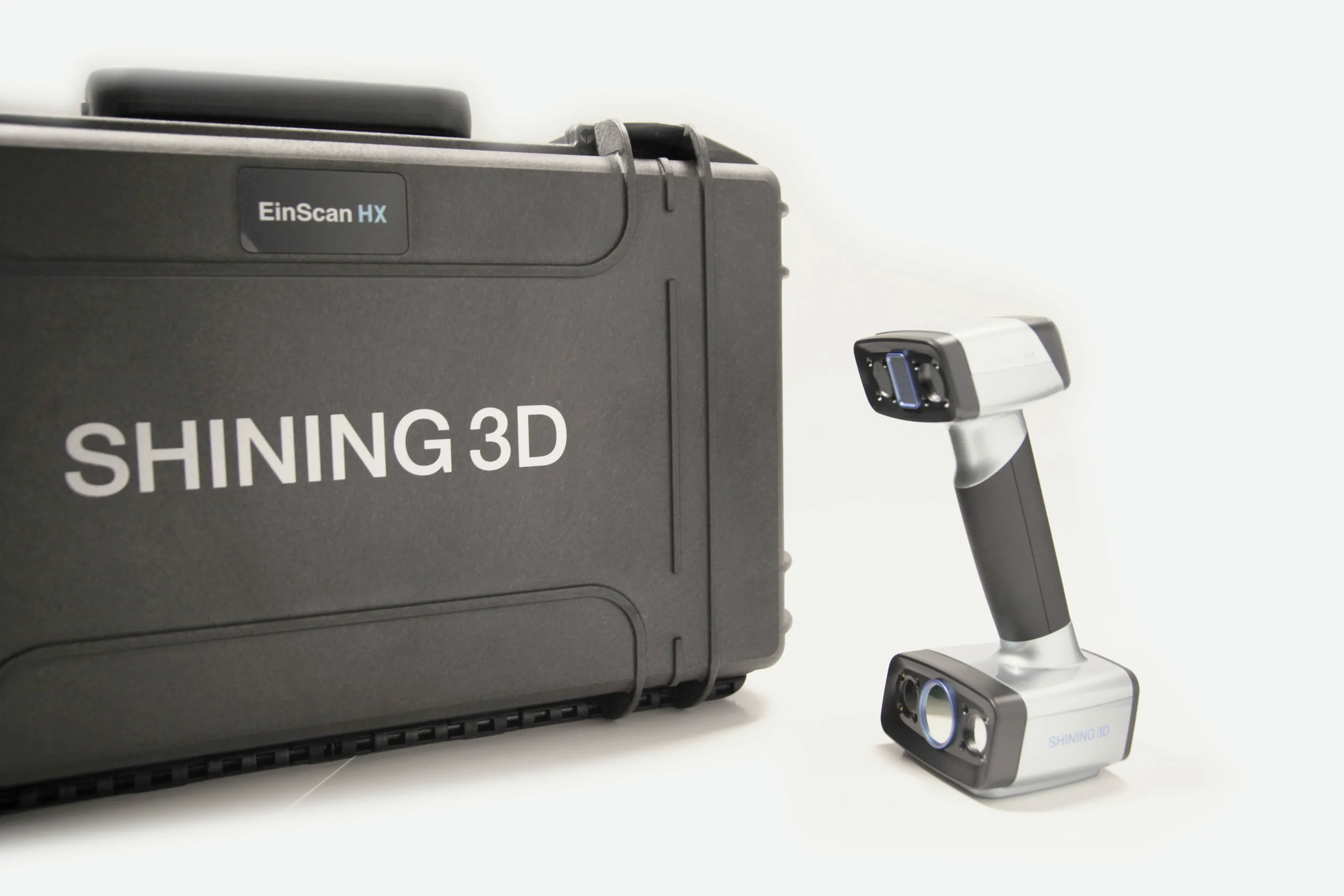

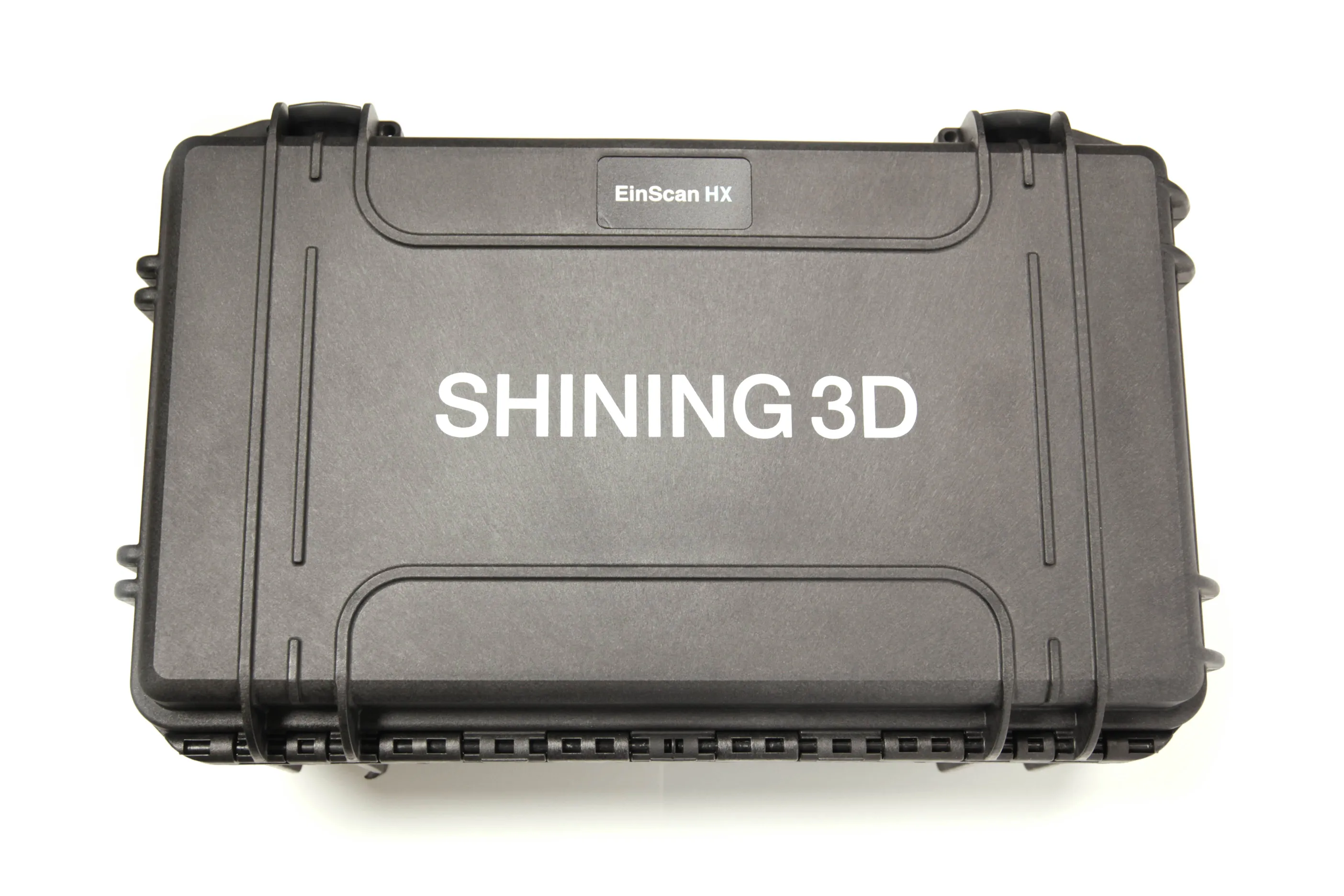

- Travel Protective Hard Case
- Manufacturer's Warranty
How can I scan dark, reflective objects?
The best way to get an accurate scan for an item which is dark and/or reflective is to spray your object with a matte spray like Aesub. This allows the scanner to accurately pick up all the details of your object.
How does this compare to Photogrammetry?
Photogrammetry (while able to produce decent results with just software and any camera available) still has a few flaws. There are many variables which can affect the accuracy of your scan including camera lens distortion, settings, lighting and shadows. With the EinScan HX, everything is self contained within the unit. It projects it's own light and allows for the use of HDR mode to vastly simplify the setup and repeatability of your scans. To learn more, check out the blog post!
How does Meshing work?
Once you are happy with the point cloud data, you can delete the points you don't need with an intuitive lasso tool right inside the scan program. You are then able to process the point cloud into a water tight mesh. Everything is automated with custom controls, allowing for the production of usable high resolution meshes with ease and predictability. Speak to our Scanning experts to see if the HX is the right scanner for you.
