Spectra Precision LR60W Laser Receiver Detector with Radio
Product overview

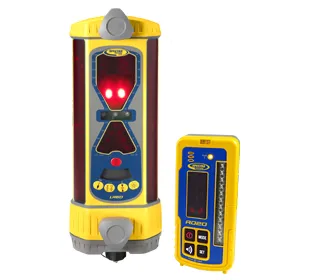

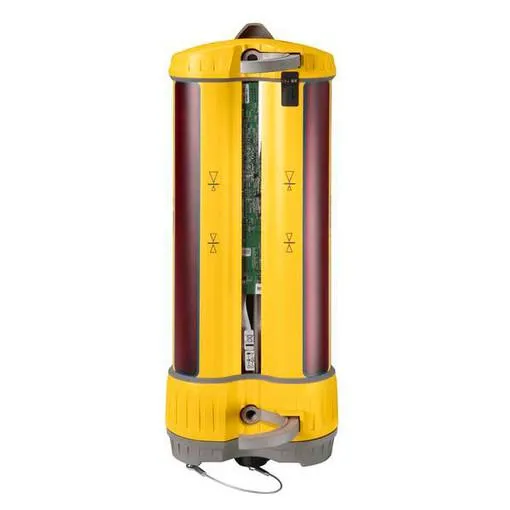

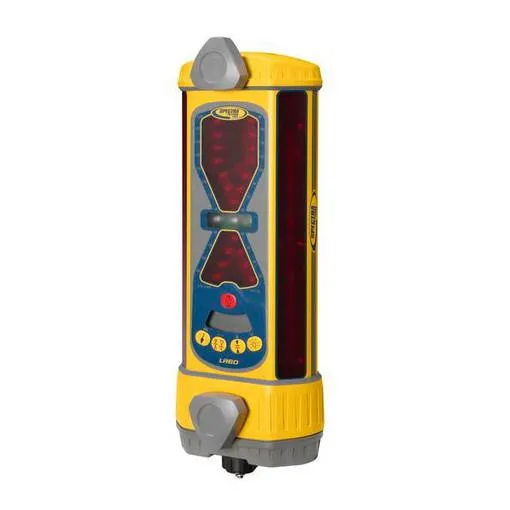

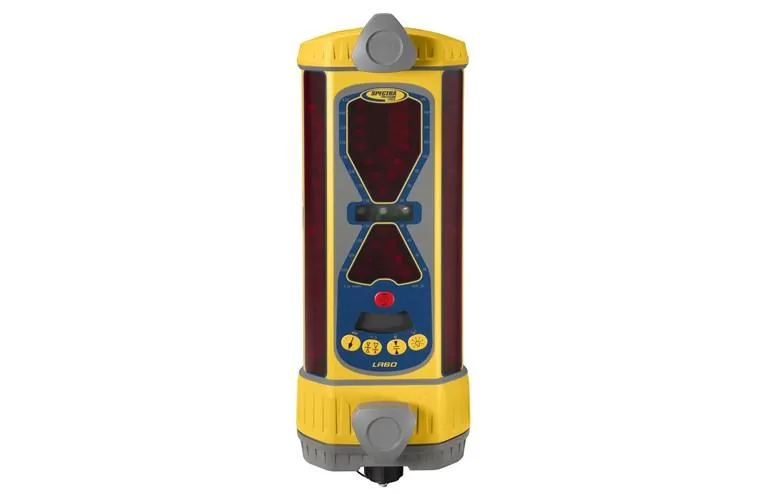

The Spectra Precision LR60 Laser Machine Display Receiver is designed to be used as a stand-alone display receiver on grading and excavating equipment including dozers, excavators, backhoes, scrapers, and box blades. For excavators and backhoes, the LR60 laser receiver features patented Angle Compensation which automatically calculates and corrects the grade display for the angle of the dipper arm. The LR60W is designed to be used with the RD20 Wireless Remote Display.
The easy-to-use LR60 features versatile 360-degree laser reception and works with all types of rotating lasers on all types of machinery for fast, no-hassle setup. Rugged and waterproof, the LR60 receiver withstands all weather environments.
Features
- Check grade with the dipper arm extended or retracted up to 30 degrees
- Built-in plumb indicator for fast, accurate grade checking for graders
- Center On-grade provides an equal amount of grade information above and below on-grade. Use on dozers, graders, scrapers and box blades
- Offset on-grade for productive excavation provides additional above grade information for fewer undercuts
- Up to eight channels of grade information plus directional out-of-beam indicators
- Four selectable accuracies for each on-grade location
- LR60W links wirelessly to RD20 in-cab display
Includes:
- LR60W (wireless)
- NiMH batteries
- Charger
- RD20 and RD20 Machine Power Cable
Specifications
| Beam Reception Range | 360 degree |
| Operating Range | Over 460 m (1500 ft) radius, depending on the laser |
| Laser RPM | Minimum: 105; Maximum: 1200 |
| Vertical Reception | 222 mm (8.75 in.) |
| Accuracy: On-Grade Deadbands | Grading Excavating |
| Setup | 5 mm (0.20 in.) 6 mm (0.25 in.) |
| Fine | 10 mm (0.40 in.) 12 mm (0.50 in.) |
| Standard | 20 mm (0.80 in.) 25 mm (1.0 in.) |
| Wide | 40 mm (1.60 in.) 50 mm (2.0 in.) |
| ACE—Angle Compensation Mode | |
| Fine | 12 mm (0.50 in.) |
| Standard | 25 mm (1.0 in.) |
| Plumb Swing Range | |
| Standard | ± 2.5° |
| Angle Compensation Mode | ± 10° to ± 30° |
| Display Output | Bright, Dim |
| Automatic Control Capability | Yes, with CB20, CB25 & CB30 Control Boxes |
| Tilt Display | Yes with RD20 Remote Display |
| Power Options | Alkaline - 4 x "C" Cell - Standard Nickel Metal Hydride - 4 x "C" Cell Power Cable - 10 -30 V dc |
| LR60 Battery Life - Alkaline | 75 hours, Display Dim / 45 hours, Display right |
| LR60W Battery Life - Alkaline (Continuous in beam) | 35 hours, Display Dim / 25 hours, Display Bright |
| LR60 Battery Life - Ni-MH | 50 hours, Display Dim / 40 hours, Display Bright |
| LR60W Battery Life - Ni-MH (Continuous in beam) | 25 hours, Display Dim / 20 hours, Display Bright |
| Battery Recharge Time | 3 - 4 hours |
| Automatic Shut Off | 75 minutes with no laser beam |
| Out of Beam Indication | High and Low |
| Remote Display Option | Yes |
| Dimensions (LxWxD) | 394 x 142 x 149 mm (15.50 in. x 5.58 in. x 5.88 in.) |
| Mounting Pipe | |
| Round Tube (Outside Diameter) | 42 mm to 50 mm (1.66 in. to 2.00 in.) |
| Square Tube | 38 mm (1.50 in.) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
