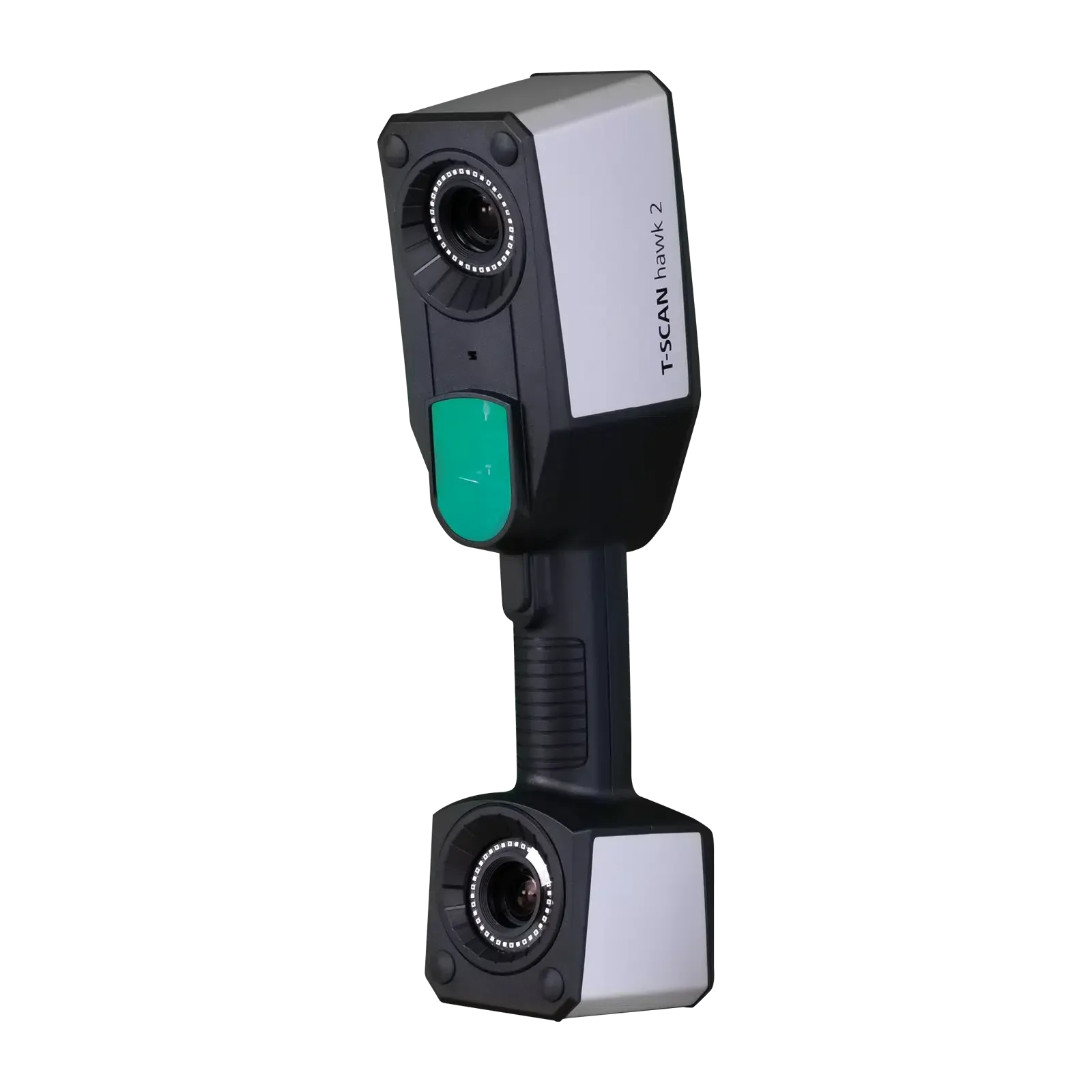

The portable T-SCAN Hawk 2 by ZEISS is a lightweight 3D laser scanner with metrology-grade precision and remarkable ease of use. No matter what the job is, or where it is, the T-SCAN Hawk 2 can get it done.

Features

• Your perfect working distance: Control your working distance with a new projection mode - a red laser marker helps you to easily adjust for perfect scanning results.
• A solution that adapts to your workflow: The T-SCAN Hawk 2 is intuitive to operate and adapts easily to the movement of your hand.
• Go big with the new satellite mode: This is the first portable laser scanner with the new satellite mode to scan up to multiple meters. No need for the classical built-in photogrammetry with coded markers.
• GOM Inspect - The all-in-one software for 3D inspection: The T-SCAN Hawk 2 operates with GOM Inspect, the well-established standard in 3D metrology and part of the ZEISS Quality Suite
• Operate with the push of a button: The scanner features 4 buttons to start and navigate your workflow directly. No need to operate the software separately on your laptop.
• Switching between different tasks: The T-SCAN Hawk 2 features seamless adjustments for resolution and field of view. Whether small parts, fine details, larger objects or deep pockets, confined spaces, or hard-to-reach areas, this 3D laser scanner does the job.
• Strong on dark and shiny surfaces: The scanner supports scanning on a wide range of materials and surfaces, delivering 3D measurement data with the highest precision.

Technical Data

High-speed scanning - Included (multiple blue laser crosses)

Deep pockets - Included (single blue laser line)

Flexible depth of field - Included (on-object distance radar)

Detailed scan - Included

One-shot sensor calibration - Included (Hyperscale)

Large parts - Included (Satellite mode, no coded markers required)

Carbon-fibre lengths standards - Certified (DAkks / ILAC)

Volumetric accuracy - 0.02 mm 0.015 mm/m

Laser class (IEC 60825-1:2014) - Class 2 (eye-safe)

Weight - < 1 kg

Cable - 10m (ultra-light)

Software - ZEISS Quality Suite / GOM Inspect

Full remote workflow - Supported

Applications

Maintenance

• 3D inspection of dents, corrosion, and damage
• 3D scanning and remanufacturing of legacy parts
• Indoor and outdoor, in rugged and harsh environments
• Wear monitoring

Reverse engineering

• From shape to CAD
• Archiving tools and cultural heritage
• Everything from small details to very large repairing of parts

Quality Control

• Actual comparison with CAD
• Functional dimensioning
• Shop floor inspection
• Reducing the number of iterations in your process

Design

• Digitize complex shapes and physical objects
• Design modification
• Interior design
• 3D visualization

Industries

• Automotive, shipping, railway, and aerospace
• Energy generation, oil and gas industry
• Agriculture, forestry and mining
• Heavy industry, mold and machine manufacturing
