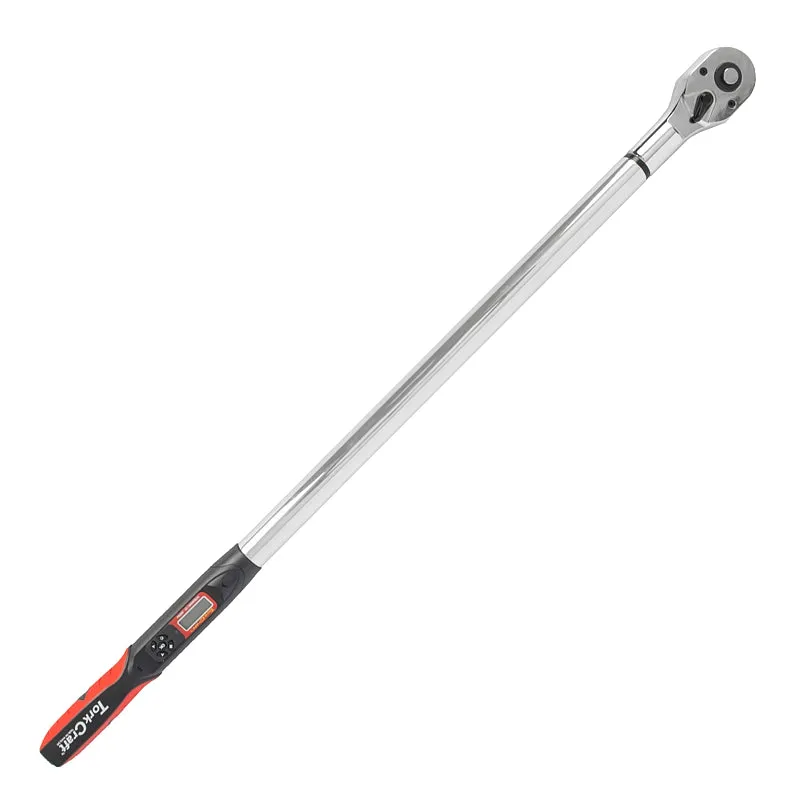

Application:
To loosen or tighten screws, bolts and nuts to a desired torque setting.
- Handle: Plastic
- Body: Steel
- Grip: Rubber
- LED indicator and LED Screen
- Direction paddle
- Buzzer
- Vibration handle
Contents
- Torque wrench
- Communication cable
- Batteries - 2 x AA
- Compact disc
- Battery compartment key
WARNING: Do not apply torque in excess
of the maximum capacity of the
wrench. Apply load on the grip only and do not use any handle
extension bars (a piece of pipe put over the grip) for additional
leverage.
Do not disassemble the wrench for any reason. Highly stressed
internal components may cause severe injury when released in
an unintended manner.
The wrench should be re-calibrated periodically. The calibration
of the wrench should be checked at least once a year, after any
abnormal handling or overloading, or after 5000 cycles ( beeps).
Do not leave the wrench in any place exposed to excessive heat,
humidity, or direct sunlight.
Specifications
| Description | Specifications |
| Packaging Dimensions | L=1275mm, W=178mm, T=86mm |
| Packaging Weight | 6100g |
| Tool Weight | 3450g |
| Tool Dimensions | L=945mm, W=63mm, T=58mm |
| Specifications | Square drive: 3/4 Torque Range: 25-500Nm Gears: 48 Accuracy: 2.5% Clockwise and 3.0% Counter Clockwise Min Resolution: 85Nm=0.01 & >85Nm =0.1 Max Operating range: 500Nm Data Storage capacity: 100 |
