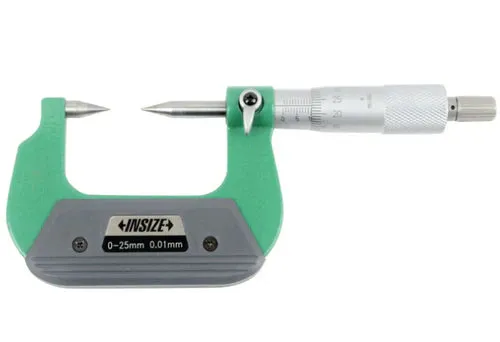

The Insize 3230-100BA Point Micrometer is a precision instrument designed for measuring the web thickness of drills, small grooves, and keyways. Its pointed anvils, angled at 15 degrees, allow for accurate measurements in hard-to-reach areas, making it an essential tool for professionals in machining, manufacturing, and quality control.

Key Features:

• Measurement Range: 75 mm to 100 mm, accommodating a variety of component sizes.
• Graduation: 0.01 mm, providing high-resolution readings for detailed measurements.
• Accuracy: ±5 µm, ensuring reliable and consistent results.

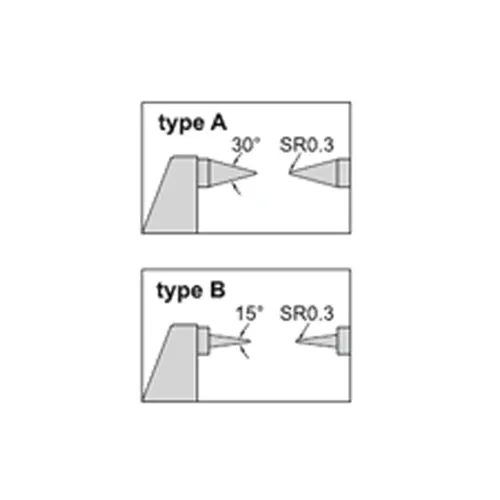

• Point Angle: 15 degrees, ideal for measuring narrow grooves and keyways.
• Carbide-Tipped Measuring Faces: Enhances durability and wear resistance for prolonged use.
• Ratchet Stop: Ensures consistent force during measurement, enhancing accuracy.
• Setting Standard Included: Supplied with a setting standard for calibration and verification.

Specifications:

• Model Number: 3230-100BA
• Measurement Range: 75 mm to 100 mm
• Graduation: 0.01 mm
• Accuracy: ±5 µm
• Point Angle: 15 degrees

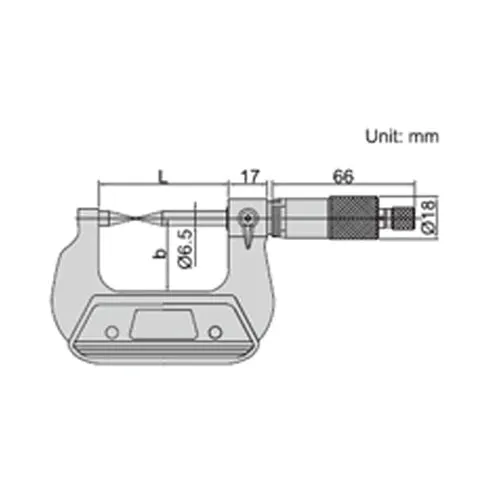

• Throat Depth (b): 47 mm
• Frame Size (L): 132.6 mm

Box Includes:

• 1 x Insize 3230-100BA Point Micrometer
• 1 x Setting Standard for calibration
• 1 x Protective Case for storage and transport

Applications: The Insize 3230-100BA Point Micrometer is ideal for:

• Measuring the web thickness of drills to ensure proper cutting performance.
• Assessing small grooves and keyways in mechanical components.
• Quality control inspections requiring precise measurements in confined spaces.
• Applications where standard micrometers are unsuitable due to the geometry of the workpiece.
